D2HW-BL221DL

开关

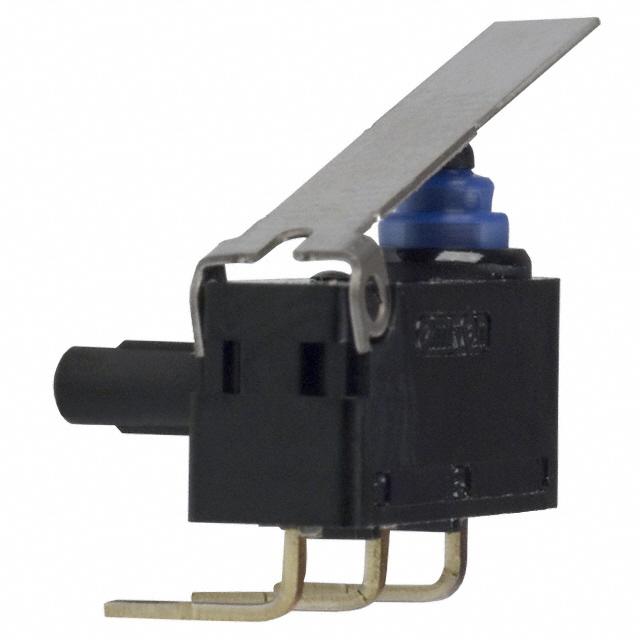

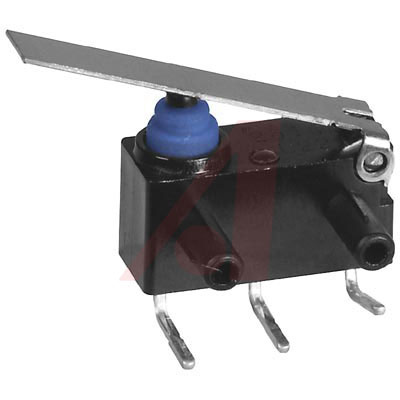

12 VDC, Sealed Subminiature Snap Action Switches

Smallest sealed snap action switch in the industry with a long stroke for reliable On/Off action. Conforms to IP67 lead wire type and IP50 terminal type.

.

* Case Dimensions:** 5.3 mm W × 13.3 mm L × 7.0 mm H. Are 22% smaller than conventional models. Has extra-long stroke even without levers — ** OT:** 1.4 mm. All models are lead-free, including lead wire models.

* Conforms to IP67 Lead Wire Type and IP50 Terminal Type

* Post or Screw Mounting Options

* Straight or Angled PCB, Solder and Lead Wire Terminal Types
