D3V-16G6-1C25-K

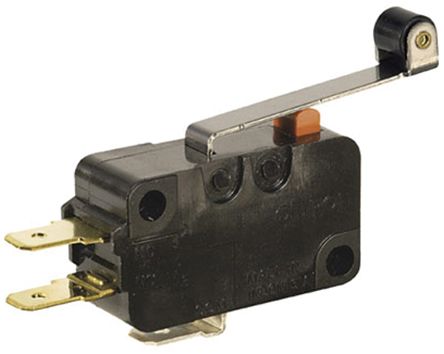

D3V-16G6-1C25-K图片1

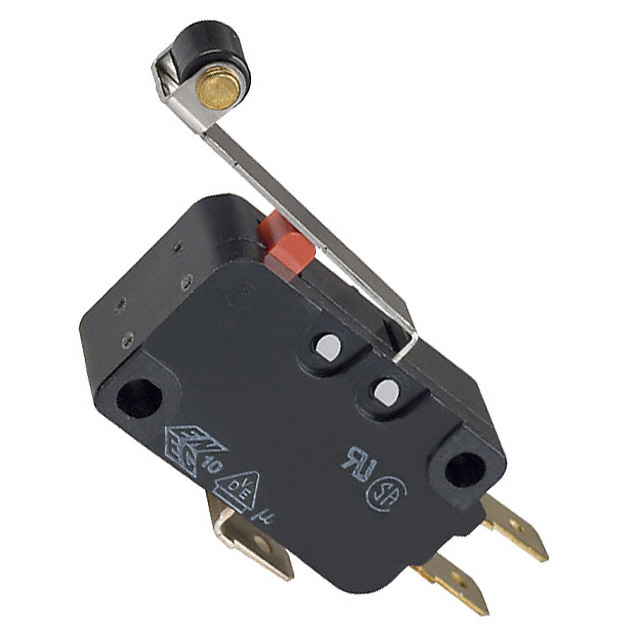

D3V-16G6-1C25-K图片2
D3V-16G6-1C25-K图片3
D3V-16G6-1C25-K图片4
D3V-16G6-1C25-K图片5
D3V-16G6-1C25-K图片6
D3V-16G6-1C25-K图片7
D3V-16G6-1C25-K图片8
D3V-16G6-1C25-K图片9
D3V-16G6-1C25-K图片10
D3V-16G6-1C25-K图片11
D3V-16G6-1C25-K图片12
D3V-16G6-1C25-K图片13
D3V-16G6-1C25-K概述

Omron 微动开关工业标准 V3 型微动开关。符合 RoHs 16A 触点切换 提供各种杠杆类型 **UL, CSA, EN61058-1** ### V3型

Hinge Roller Lever Actuator Type, 250 VAC, Miniature Basic Switches

Reliable and safe snap action switch with external lever. It"s free of beryllium copper so it"s environment-friendly.
.
* Maximum Operating Temperature:** 105°C. Self-cleaning contacts. Available in 6 A, 11 A or 16 A models and with internally or externally fitted levers. Two operating positions for external levers. Conforms to EN61058-1. ** Case Dimensions:** 10.3 mm W × 27.8 mm L × 15.9 mm H.

* Self-Cleaning Contacts

* Internal or External-Fitted Levers

* Two Operating Positions for External Levers

D3V-16G6-1C25-K中文资料参数规格
技术参数

接触器类型 Roller Lever

额定电流 16 A

触点类型 SPDT

触点额定电流 16A @250VAC

额定电流Max 16A @250VAC

工作温度Max 105 ℃

工作温度Min -25 ℃

额定电压 250 VAC

额定电压DC Max 250 V

额定电压AC Max 250 V

封装参数

安装方式 Quick Connect

外形尺寸

长度 48.2 mm

宽度 10.3 mm

高度 30.4 mm

物理参数

触点材质 Silver Alloy

工作温度 -25℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买D3V-16G6-1C25-K
型号: D3V-16G6-1C25-K
制造商: Omron 欧姆龙
描述:Omron 微动开关 工业标准 V3 型微动开关。 符合 RoHs 16A 触点切换 提供各种杠杆类型 **UL, CSA, EN61058-1** ### V3型
替代型号D3V-16G6-1C25-K
型号/品牌 代替类型 替代型号对比

D3V-16G6-1C25-K

Omron 欧姆龙

当前型号

当前型号

V7-1S17D8-207

霍尼韦尔

功能相似

D3V-16G6-1C25-K和V7-1S17D8-207的区别

V7-2B17P07-207-1

霍尼韦尔

功能相似

D3V-16G6-1C25-K和V7-2B17P07-207-1的区别
