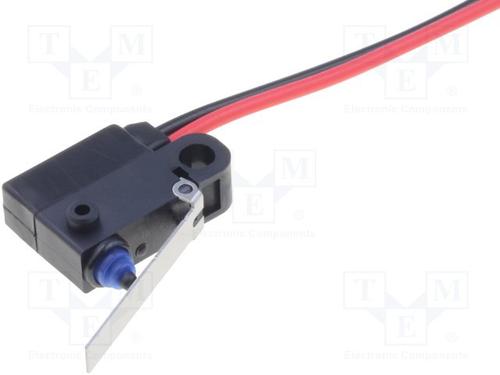

OMRON ELECTRONIC COMPONENTS D2HW-C222MR 微动开关, D2HW Series, SPST-常闭, 带引线, 2 A, 125 VAC, 12 VDC
超小型密封微动,(D2HW 螺钉安装)
符合 RoHs
超长行程
尺寸为传统型号的 78%

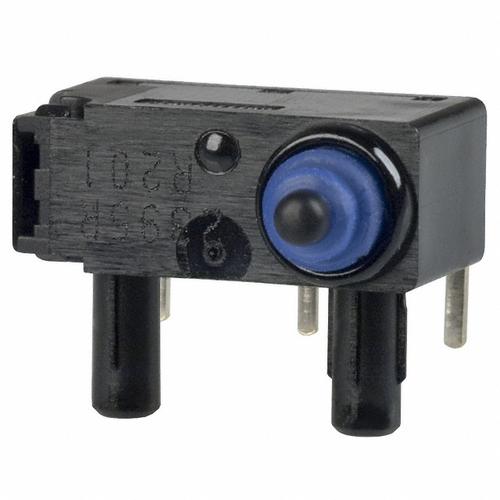

印刷电路板端子版本带有直向和直角接线端子
触点额定值:在 12V 直流时为 2A,在 125V 交流时为 0.1A
最小负载:在 5V 直流时为 1mA
触点配置:单刀双掷
立创商城:
开关
欧时:
Omron D2HW-C222MR 单刀单掷-常闭 长摆杆 微动开关, 2 A @ 12 V 直流
e络盟:
OMRON ELECTRONIC COMPONENTS D2HW-C222MR 微动开关, D2HW Series, SPST-常闭, 带引线, 2 A, 125 VAC, 12 VDC
艾睿:
If you&s;re looking for rapid switching to close your circuit use this D2HW-C222MR snap-action switch from Omron. It has a SPST configuration. This device has a maximum current rating of 2 A @ 12VDC. This snap action switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The D2HW-C222MR snap action switch has a wire lead termination style. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 42 VDC. This product is 8.3 mm deep.
安富利:
Switch Snap Action N.C. SPST Long Hinge Lever Wire Lead 2A 125VAC 42VDC 0.5N Screw Mount
Chip1Stop:
Switch Snap Action N.C. SPST Long Hinge Lever Wire Lead 2A 125VAC 42VDC 0.5N Screw Mount
TME:
Microswitch; with lever; SPST-NC; 0.1A/125VAC; 2A/12VDC; ON-OFF
Verical:
Switch Snap Action N.C. SPST Long Hinge Lever Wire Lead 2A 125VAC 42VDC 0.5N Screw Mount
MASTER:
Switch Snap Action N.C. SPST Long Hinge Lever Wire Lead 2A 125VAC 42VDC 0.5N Screw Mount
Online Components:
Switch Snap Action N.C. SPST Long Hinge Lever Wire Lead 2A 125VAC 42VDC 0.5N Screw Mount
Electro Sonic:
Switch Snap Action N.C. SPST Long Hinge Lever Wire Lead 2A 125VAC 42VDC 0.5N Screw Mount
触点电镀 Gold
额定电压DC 12 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 100mA AC, 2A DC
触点类型 SPST-NC
触点额定电流 2A @12VDC
额定电流Max 2A @12VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 42 V
额定电压AC Max 125 V
安装方式 Chassis
封装 -
长度 18.5 mm
宽度 8.3 mm
高度 20.5 mm
封装 -
触点材质 Gold Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 100000 Cycles
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536507000
