开关
is manufactured by Elect and is categorized in the Snap Action, Limit Switches category. D2HW-BL231DL is described as SWITCH SNAP ACT SPDT 100MA 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.
立创商城:
开关
贸泽:
Basic / Snap Action Switches Subminiature Basic Switch
艾睿:
Switch Snap Action N.O./N.C. SPDT Simulated Roller Hinge Lever PC Pins 2A 125VAC 42VDC 0.65N Thru-Hole
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Simulated Roller Hinge Lever PC Pins 2A 125VAC 42VDC 0.65N Thru-Hole
Verical:
Switch Snap Action N.O./N.C. SPDT Simulated Roller Hinge Lever PC Pins 2A 125VAC 42VDC 0.65N Thru-Hole
Newark:

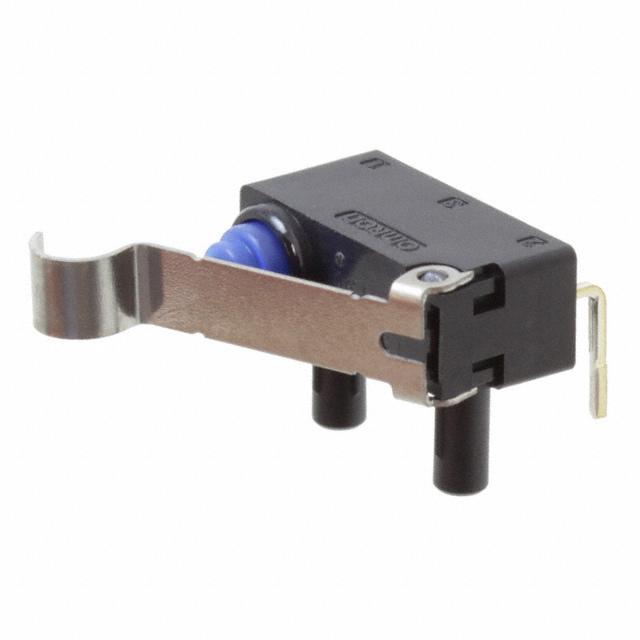

# OMRON ELECTRONIC COMPONENTS D2HW-BL231DL Microswitch, SPDT, Simulated Roller Lever, Solder, 2 mA, 125 V
MASTER:
Switch Snap Action N.O./N.C. SPDT Simulated Roller Hinge Lever PC Pins 2A 125VAC 42VDC 0.65N Thru-Hole
Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Simulated Roller Hinge Lever PC Pins 2A 125VAC 42VDC 0.65N Thru-Hole
额定电压DC 12 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 0.1A, 2A
触点类型 SPDT
额定电流Max 2A @12VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 42 V
额定电压AC Max 125 V
安装方式 Through Hole
封装 125
长度 13.3 mm
宽度 18.75 mm
高度 10.3 mm
封装 125
触点材质 Gold Alloy
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536507000
