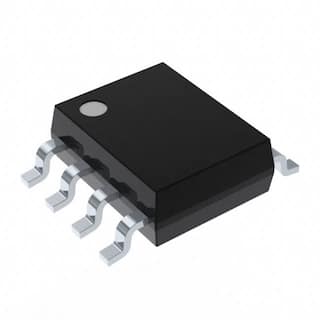

MAXIM INTEGRATED PRODUCTS  DS1722S+T&R  温度传感器芯片, SPI, 数字式, ± 2°C, -55 °C, 125 °C, NSOIC, 8 引脚

The DS1722S+T&R is a digital thermometer with SPI/3-wire interface in 8 pin NSOIC package. The digital thermometer and thermostat with SPI/3-wire interface provides temperature readings which indicate the temperature of the device. No additional components are required, device is truly a temperature to digital converter. Temperature readings are communicated from the IC over a Motorola SPI interface or a standard 3-wire serial interface. The choice of interface standard is selectable by the user. For applications that require greater temperature resolution, the user can adjust the read out resolution from 8bit to 12bit. This is particularly useful in applications where thermal runaway conditions must be detected quickly.

.
Supply voltage range is 2.7V to 5.5V
.
Measures temperatures from -55°C to +120°C fahrenheit equivalent is -67°F to +248°F
.
Thermometer accuracy is ±2.0°C
.
Separate digital supply allows for 1.8V logic 1.8V to 5.5V
.
Maximum conversion time is 75ms for 8bit conversions -55°C to +120°C, 2.65V
.
Maximum conversion time is 1200ms for 12bit conversions -55°C to +120°C, 2.65V
DS1722S+T&R中文资料参数规格
技术参数

电源电压DC 2.70V min

针脚数 8

精度 ±3 ℃

电源电压 2.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 传感与仪器, Communications & Networking, 通信与网络, Sensing & Instrumentation

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free
