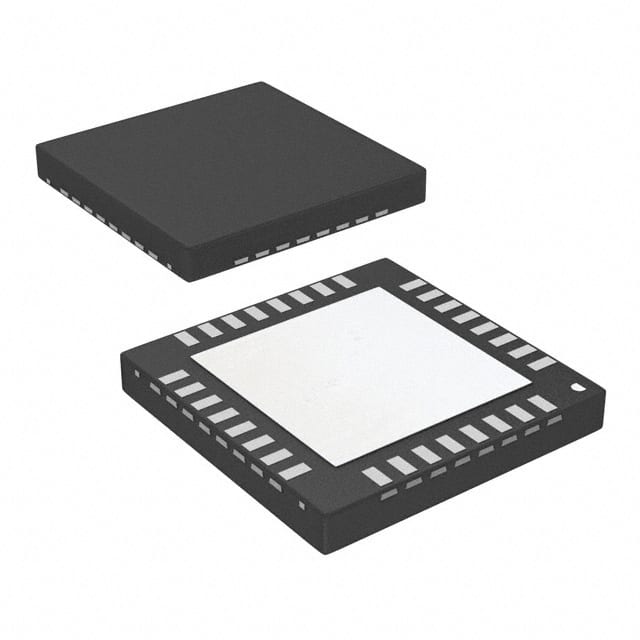

TEXAS INSTRUMENTS DS90CP04TLQ/NOPB 芯片, 数字式交叉开关, 4X4, LLP-32, 整卷
DS90CP04 is a 4x4 digital cross-point switch with broadside input and output pins for efficient board layout. It utilizes Low Voltage Differential Swing LVDS technology for low power, high-speed operation. Data paths are fully differential from input to output for low noise. The non-blocking architecture allows connections of any input to any output or outputs. The switch matrix consists of four differential 4:1 multiplexes. Each output channel connects to one of the four inputs common to all multiplexers.
A simple serial control interface or a configuration select port is activated by the state of the MODE pin. When utilizing the serial control interface a single load command will update the new switch configuration for all outputs simultaneously.
电源电压DC 2.38V min
针脚数 32
数据速率 1.50 Gbps
功耗 725 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.375V ~ 2.625V
电源电压Max 2.625 V
电源电压Min 2.375 V
安装方式 Surface Mount
引脚数 32
封装 WQFN-32
封装 WQFN-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DS90CP04TLQ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
DS90CP04TLQ 德州仪器 | 完全替代 | DS90CP04TLQ/NOPB和DS90CP04TLQ的区别 |
DS90CP04TLQX/NOPB 德州仪器 | 完全替代 | DS90CP04TLQ/NOPB和DS90CP04TLQX/NOPB的区别 |
