DS1110S-100+

MAXIM INTEGRATED PRODUCTS  DS1110S-100+  芯片, 延迟线

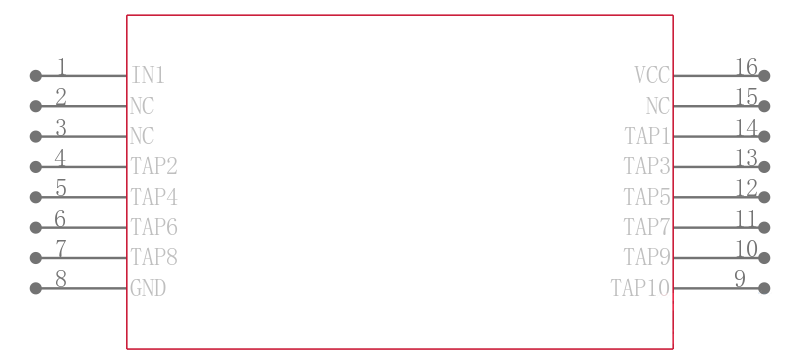

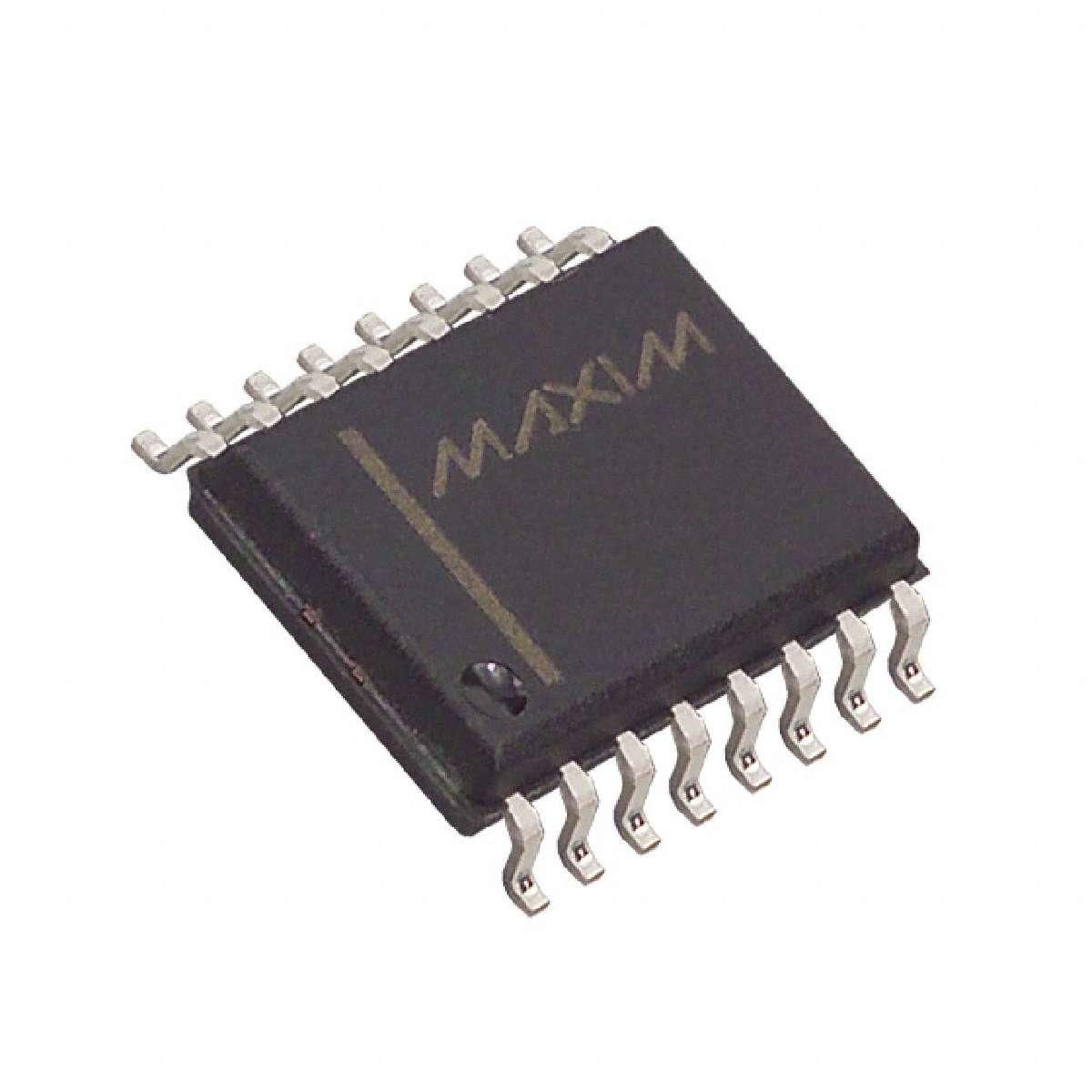

The is a 10-tap silicon delay line in 16 pin WSOIC package. This delay line has ten equally spaced taps also provide a nominal accuracy of ±5% or ±2ns whichever is greater at 5V and +25°C. It reproduces the input logic state at the tap 10 output after a fixed delay as 100ns. It is designed to produce both leading and trailing edge delays with equal precision. Each tap is capable of driving up to ten 74LS type loads. This delay line is an improved replacement for the DS1010. It is used in automated test equipment and PC peripheral devices.

.

Supply voltage range is 4.75V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

Delay per tap is 10ns & total delay is 100ns

.

Maximum power-up time is 200ms

.

Maximum active current is 150mA, delay is stable and precise

.

Leading and trailing edge accuracy

.

Fast turn prototypes

.

Economical, auto-insertable & low profile

.

Low power CMOS & TTL/CMOS compatible

.

Vapour phase, IR and wave solderable
