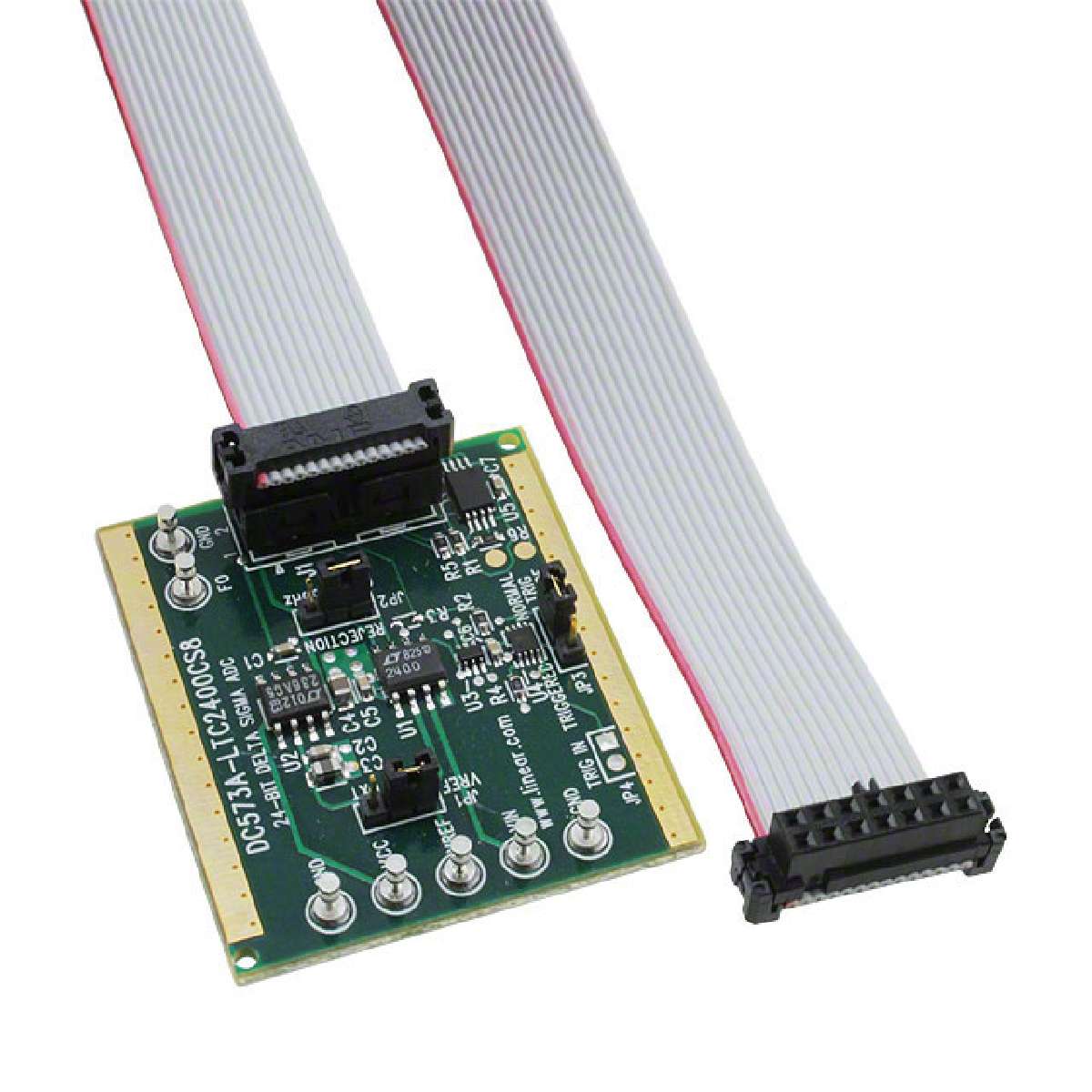

Demonstration Board, 24Bit, 7.5SPS, Analog to Digital Converter
QuikEval demonstration board is for the evaluation of LTC2400CS8 ADC. It is a 2.7V to 5.5V micropower 24bit converter with an integrated oscillator. The LTC2400 combines exemplary DC accuracy with an easy to use SPI interface in a SO8 package. It uses delta sigma technology and provides single cycle settling time for multiplexed applications. The LTC2400 communicates through a flexible 3 Wire digital interface which is compatible with SPI and MICROWIRE protocols. DC573A is designed to allow easy evaluation of the LTC2400 and may be connected directly to the target application’s analog signals while using the DC590 USB serial controller board and supplied software to measure performance.
