Framer E1/J1/T1 3.3V 49Pin CSBGA

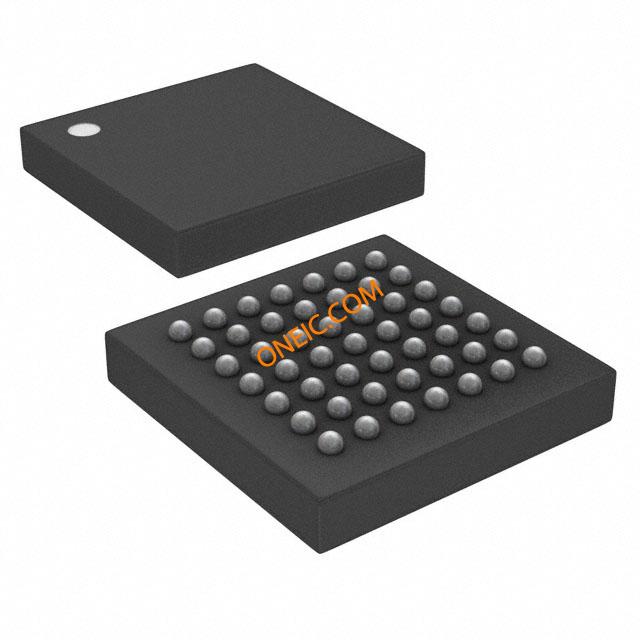

Telecom IC 49-CSBGA 7x7
得捷:
IC TELECOM INTERFACE 49CSBGA
立创商城:
DS21348G+
安富利:
The DS21348 is a complete selectable E1 or T1 line interface unit LIU for short-haul and long-haulapplications. Throughout the data sheet, J1 is represented wherever T1 exists. Receive sensitivity adjustsautomatically to the incoming signal and can be programmed for 0dB to 12dB or 0dB to 43dB for E1applications and 0dB to 30dB or 0dB to 36dB for T1 applications. The device can generate the necessaryG.703 E1 waveshapes in 75Ω or 120Ω applications and DSX-1 line build-outs or CSU line build-outs of0dB, -7.5dB, -15dB, and -22.5dB for T1 applications. The crystal-less on-board jitter attenuator requiresonly a 2.048MHz MCLK for both E1 and T1 applications with the option of using a 1.544MHz MCLKin T1 applications. The jitter attenuator FIFO is selectable to either 32 bits or 128 bits in depth and canbe placed in either the transmit or receive data paths. An X 2.048MHz output clock synthesized to RCLKis available for use as a backplane system clock where n = 1, 2, 4, or 8.The DS21348 has diagnostic capabilities such as loopbacks and PRBS pattern generation/detection. 16-bit loop-up and loop-down codes can be generated and detected. The device can be controlled through an8-bit parallel muxed or nonmuxed port, serial port, or used in hardware mode. The device fully meets allof the latest E1 and T1 specifications including ANSI T1.403-1999, ANSI T1.408, AT&T TR 62411,ITU G.703, G.704, G.706, G.736, G.775, G.823, I.431, O.151, O.161, ETSI ETS 300 166, JTG.703,JTI.431, JJ-20.1, TBR12, TBR13, and CTR4.
DeviceMart:
IC LIU T1/E1/J1 3.3V 49-BGA
Win Source:
IC LIU T1/E1/J1 3.3V 49-BGA
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DS21348G+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
DS2148G 美信 | 类似代替 | DS21348G+和DS2148G的区别 |
