DP83847ALQA56AX/NOPB

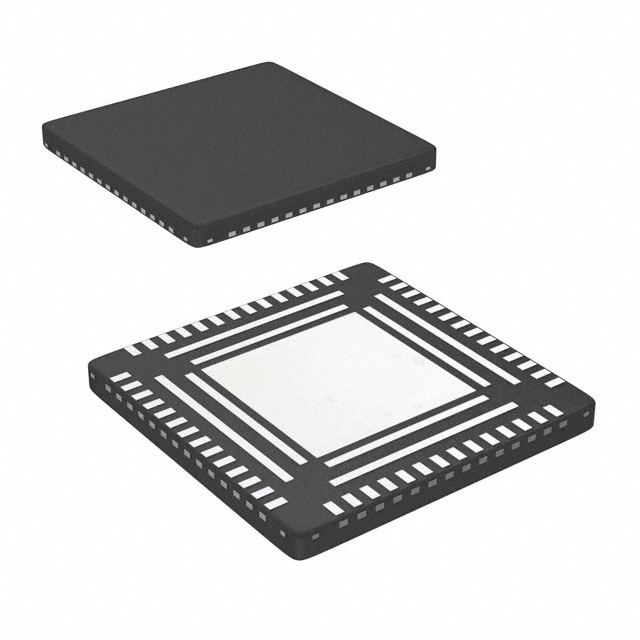

DP83847ALQA56AX/NOPB图片1
DP83847ALQA56AX/NOPB图片2
DP83847ALQA56AX/NOPB图片3
DP83847ALQA56AX/NOPB图片4
DP83847ALQA56AX/NOPB图片5
DP83847ALQA56AX/NOPB图片6
DP83847ALQA56AX/NOPB概述

10/100Mbps 以太网 PHY 收发器,具有可耐受 5V 电压的 I/O 56-WQFN 0 to 70

The DP83847 is a full feature single Physical Layer device with integrated PMD sublayers to support both 10BASE-T and 100BASE-TX Ethernet protocols over Category 3 10 Mb/s or Category 5 unshielded twisted pair cables.

The DP83847 is designed for easy implementation of 10/100 Mb/s Ethernet home or office solutions. It interfaces to Twisted Pair media via an external transformer. This device interfaces directly to MAC devices through the IEEE 802.3u standard Media Independent Interface MII ensuring interoperability between products from different vendors.

The DP83847 utilizes on chip Digital Signal Processing DSP technology and digital Phase Lock Loops PLLs for robust performance under all operating conditions, enhanced noise immunity, and lower external component count when compared to analog solutions.

DP83847ALQA56AX/NOPB中文资料参数规格
技术参数

供电电流 106 mA

通道数 1

数据速率 100 kbps

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压 3V ~ 3.6V

封装参数

安装方式 Surface Mount

引脚数 56

封装 WFQFN-56

外形尺寸

封装 WFQFN-56

电缆长度 120 m

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 5A991.b.1

数据手册

DP83847ALQA56AX/NOPB引脚图与封装图
DP83847ALQA56AX/NOPB引脚图
在线购买DP83847ALQA56AX/NOPB
型号: DP83847ALQA56AX/NOPB
制造商: TI 德州仪器
描述:10/100Mbps 以太网 PHY 收发器,具有可耐受 5V 电压的 I/O 56-WQFN 0 to 70
替代型号DP83847ALQA56AX/NOPB
型号/品牌 代替类型 替代型号对比

DP83847ALQA56AX/NOPB

TI 德州仪器

当前型号

当前型号

DP83847ALQA56A/NOPB

德州仪器

完全替代

DP83847ALQA56AX/NOPB和DP83847ALQA56A/NOPB的区别

DP83847ALQA56AX

德州仪器

完全替代

DP83847ALQA56AX/NOPB和DP83847ALQA56AX的区别
