DS1088LU-10+

MAXIM INTEGRATED PRODUCTS  DS1088LU-10+  芯片, 定时器

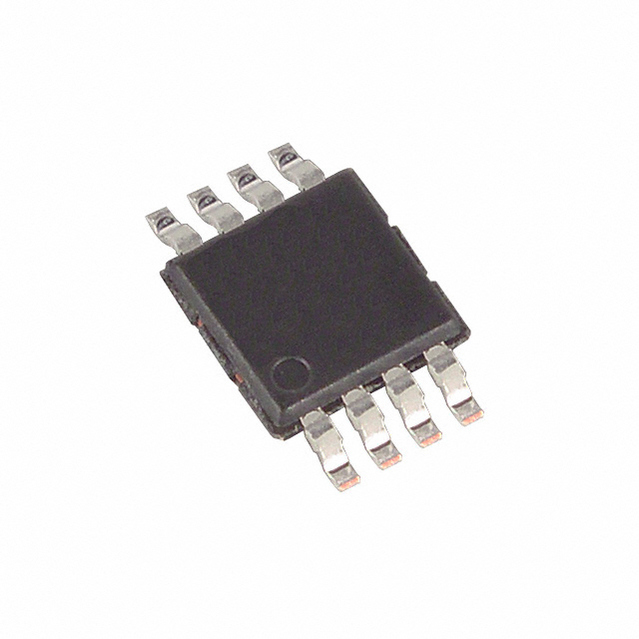

The is a fixed frequency EconOscillator in 8 pin µMAX package. The DS1088L is a low cost clock generator that produces a square wave output without external timing components. The internal oscillator frequency is divided by the factory-programmed prescaler to produce an output frequency of 10MHz. The device has a power-down pin for power-sensitive applications. The PDN pin disables the internal oscillator and the oscillator output for power-sensitive applications. The power-down pin must remain low for at least two output frequency cycles plus 10µs for deglitching purposes. On power-up, the output is disabled until power is stable and the voltage-controlled oscillator has generated 512 clock cycles.

.

Supply voltage range is 2.7V to 3.6V

.

Operating temperature range from -20°C to 85°C

.

No external timing components required

.

1% frequency tolerance over temperature and voltage
