DS1099U-FF+

MAXIM INTEGRATED PRODUCTS  DS1099U-FF+  芯片, 定时器

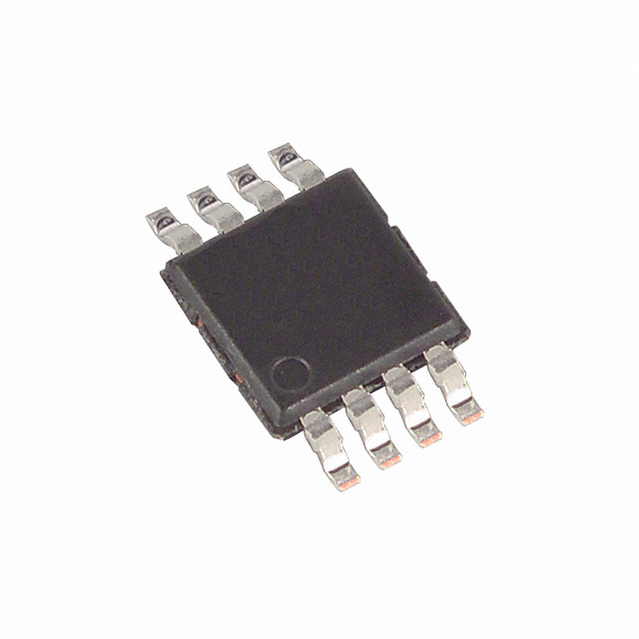

The is a low frequency dual EconOscillator in 8 pin µMAX package. It is a low cost, low power, low frequency silicon oscillator that generates two square wave outputs with frequency of 32.750KHz. Individual output enables allow both outputs to be enabled/disabled independently. Both outputs are capable of sinking 16mA allowing them to directly interface to light emitting diodes LEDs as well as other external circuitry. The DS1099 operates over a wide supply voltage making it suitable for both 3V and 5V systems.

.

Supply voltage range is 2.7V to 5.5V

.

Operating temperature range from -40°C to 125°C

.

No external timing components required

.

Independent output enables OE0, OE1

.

CMOS/TTL compatible outputs

.

Relieves microprocessor of periodic interrupt

.

Low power consumption

.

Temp drift max is ±100ppm/°C
