MAXIM INTEGRATED PRODUCTS DS1859E-050+ 非易失性数字电位器, 50 kohm, 双, 串行, 线性, 2.85 V

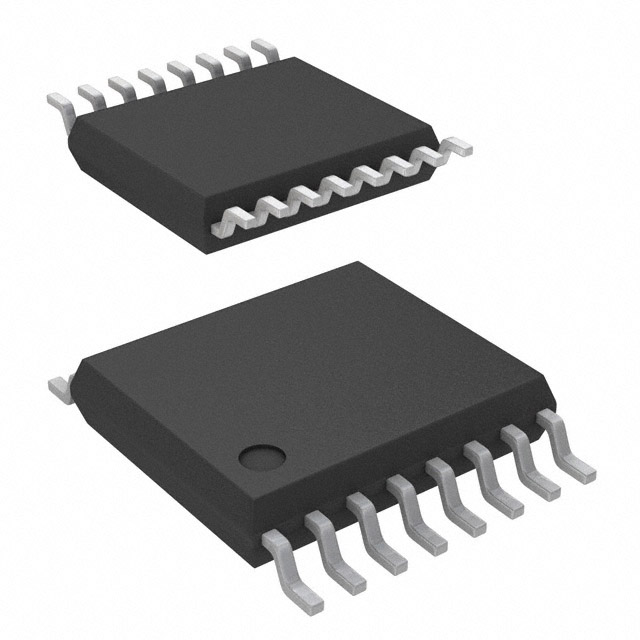

The is a dual, temperature-controlled resistor with internally calibrated monitor in 16 pin TSSOP package. The DS1859 dual, temperature-controlled, non-volatileNV variable resistors with three monitors consists of two 50kohm, 256-position, linear, variable resistors, three analogue monitor inputs MON1, MON2, MON3; and a direct to digital temperature sensor. The device provides an ideal method for setting and temperature compensating bias voltages and currents in control applications using minimal circuitry. The variable resistor settings are stored in EEPROM memory and can be accessed over the 2-wire serial bus. Typical applications include optical transceivers, optical transponders instrumentation and industrial controls, RF power amps and diagnostic monitoring.
电源电压DC 2.85V min
容差 ±20 %
电路数 2
针脚数 16
时钟频率 400kHz max
电阻 50 kΩ
工作温度Max 95 ℃
工作温度Min -40 ℃
电源电压 2.85V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.85 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 95℃
温度系数 ±50 ppm/℃
产品生命周期 Unknown
包装方式 Each
制造应用 信号处理, 通信与网络, 工业, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DS1859E-050+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
DS1859E-050 美信 | 功能相似 | DS1859E-050+和DS1859E-050的区别 |
DS1859E-050+T&R 美信 | 功能相似 | DS1859E-050+和DS1859E-050+T&R的区别 |
DS1859E-050/T&R 美信 | 功能相似 | DS1859E-050+和DS1859E-050/T&R的区别 |
