DC2196A-A

LINEAR TECHNOLOGY  DC2196A-A  演示电路板, LTC2666-16, 八路, 数模转换器

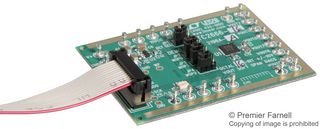

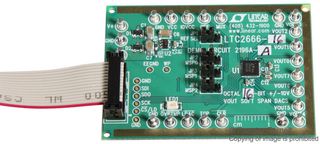

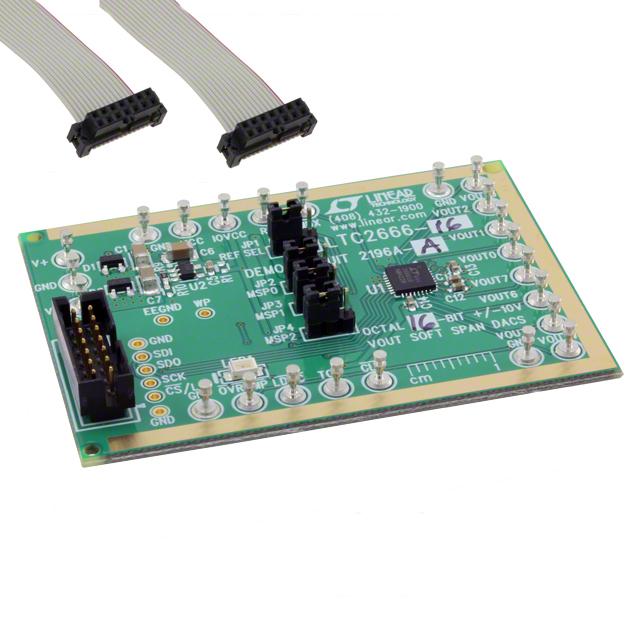

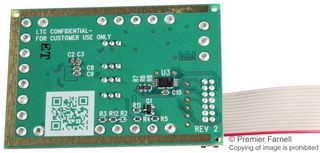

The is a Demonstration Board for LTC2666-16 a 8-channel 16-Bit ±10V VOUT SoftSpan™ Digital-to-Analogue Convertor DACs with 10ppm/°C maximum reference. This device features per-channel SoftSpan configuration with five output ranges, 0 to 5V, 0 to 10V, ±2.5V, ±5V and ±10V. A toggle feature allows any or all DACs to switch between two programmed codes via a single SPI command or by the TGP input pin. The versatile SPI interface can operate on any logic level between 1.71 and 5.5V, for easy interface to lower voltage microcontrollers or FPGAs.
