D2W203F-11

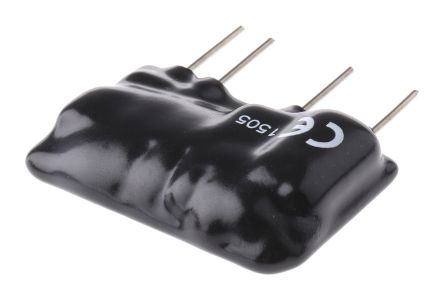

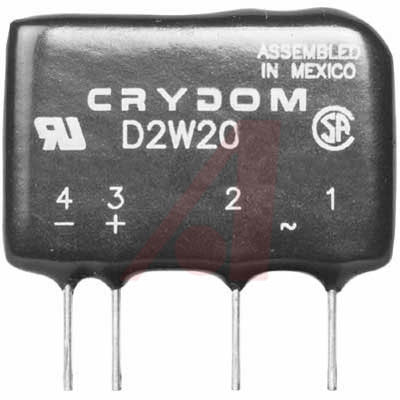

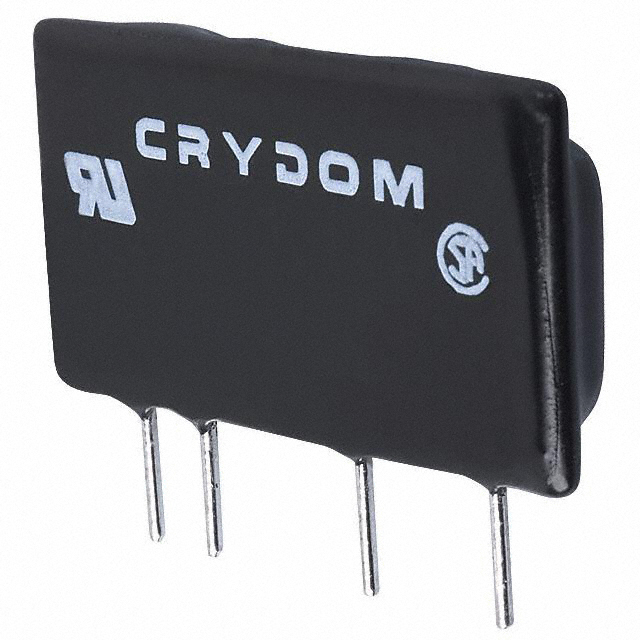

D2W 系列 3.5 A 24 至 280 V 过零 直流控制 固态继电器 PCB - SIP-4

印刷电路板安装单列直插式固态 - D2W 系列

单列直插式包装，用于印刷电路板安装

直流控制

可切换高达 3.5A 的交流负载

隔离电压 4000V 有效值

工作温度范围：-20 至 +80°C

尺寸：39.8x11.9x43.2mm

### 认可

UL，CSA

欧时:
Sensata / Crydom 3.5 A PCB安装 单刀单掷 固态继电器 D2W203F-11, 三端双向可控硅开关元件输出

得捷:
SSR RELAY SPST-NO 3.5A 24-280V

艾睿:
Relay SSR 3mA 32V DC-IN 3.5A 280V AC-OUT 4-Pin SIP

Allied Electronics:
Relay; SSR; Zero-Switching; Cur-Rtg 0.06-3.5A; Ctrl-V 3-32DC; Vol-Rtg 24-280V; 4 Pin

Jameco:
Relay Solid State 3mA 32 Volt DC Input 3.5a 280 Volt AC Output 4-Pin Sip

富昌:
D2W Series 3.5 A 24 to 280 V Zero Cross DC Control Solid State Relay PCB - SIP-4

Chip1Stop:
Relay SSR 3mA 32V DC-IN 3.5A 280V AC-OUT 4-Pin SIP

Verical:
Relay SSR 3mA 32V DC-IN 3.5A 280V AC-OUT 4-Pin SIP

MASTER:
Solid State Relay, Voltage Input: 3-32 VDC, Voltage Load: 24-280VAC, Current Rating: 3.5A, PCB Mount.

Electro Sonic:
Solid State Relay, Voltage Input: 3-32 VDC, Voltage Load: 24-280VAC, Current Rating: 3.5A, PCB Mount.
