DAC37J82EVM概述
DAC37J82 DAC Evaluation Board 1.6GSPS Graphical User Interface IDE

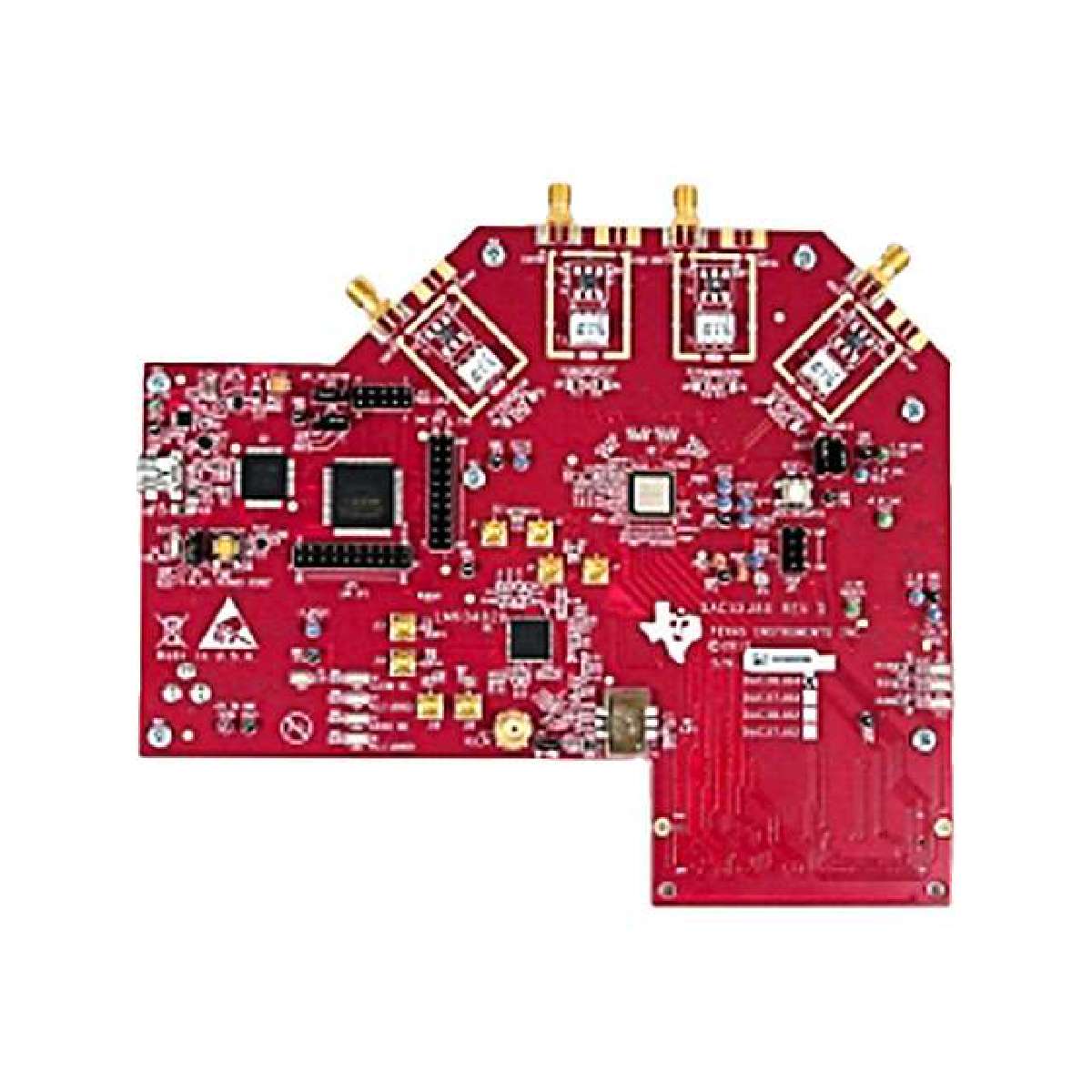

The DAC3XJ8XEVM is an evaluation module EVM designed to evaluate the DAC3XJ8X family of high-speed, JESD204B interface DACs DAC37J82, DAC37J84, DAC38J82, DAC38J84. The EVM includes an onboard clocking solution LMK04828, transformer coupled outputs, full power solution, and easy-to-use software GUI and USB interface.
The DAC3XJ8XEVM is designed to work seamlessly with the TSW14J56EVM, Texas Instruments’ JESD204B pattern generator card, through the High Speed Data Converter Pro HSDCPro software tool for high-speed data converter evaluation. The DAC3XJ8XEVM was also designed to work with many of the development kits from leading FPGA vendors that contain an FMC connector.
