D4840

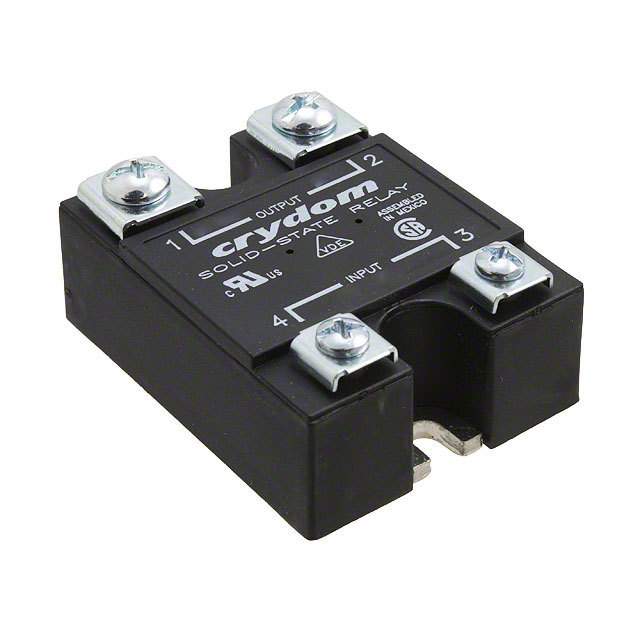

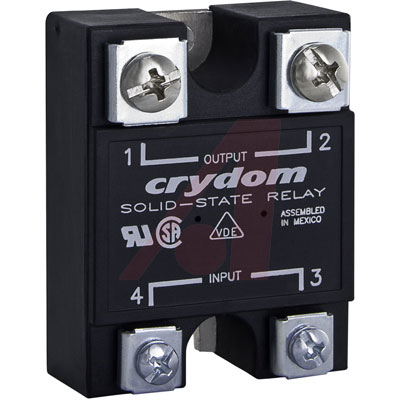

CRYDOM  D4840  固态继电器, SPST-常开, 40 A, 面板安装, 螺丝, 80 Vrms, 530 Vrms

** 10-125 Amp; 120, 240 VAC; AC Output**

Featuring state-of-the-art surface mount technology, these SPST-NO relays deliver proven reliability in the most demanding applications. Output consists of an SCR AC switch with internal snubber and is available in zero-cross, random turn-on phase controllable versions with either AC or DC input coil control.

.

* Operating Temperature Range:** –30°C to 80°C. ** Isolation Voltage V RMS :** 4000\. ** Options Available on Special Order:** Normally closed Form B, 400 Hz operation and 24 VAC input 18-36 VAC.

** Features**

* AC or DC Control, SCR AC Output

* Zero Voltage Switching

* Panel Mount

* UL, CSA, VDE Approved

** 2.5-125 Amp; 120/240, 480 VAC; AC Output**

** Features**

* Zero Voltage and Random Turn-On Switching

* Panel Mount

* Internal Snubber

* 600 V Transient Capability

* Outputs Normally Open
