D4875

CRYDOM  D4875  固态继电器, SPST-常开, 75 A, 面板安装, 螺丝, 48 VAC, 530 Vrms

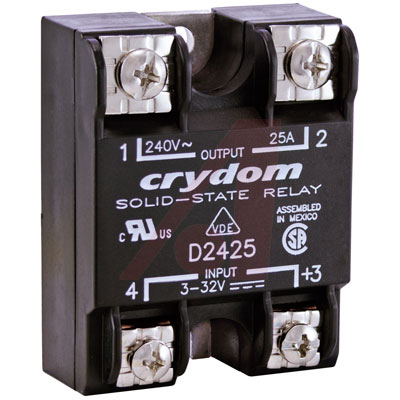

The is a Solid State Relay with aluminium base plate, 94V-0 housing, SPST-NO contact, zero crossing switching mode and screw terminals. This series-1 relay panel mount features improved SEMS screw and washer, redesigned housing with anti-rotation barriers. Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.

.

Epoxy-free design

.

AC or DC Control

.

SCR output for heavy industrial loads

.

1.15Vrms Maximum on-state voltage drop

.

4000Vrms Dielectric strength

.

Current regulated nominal input impedance

.

1/2 cycle ms Turn-on/off maximum time

.

-40 to 80°C Ambient operating temperature range

Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
