D1D40L

CRYDOM  D1D40L  固态继电器, SPST-常开, 40 A, 面板安装, 螺丝, 0 VDC, 100 VDC

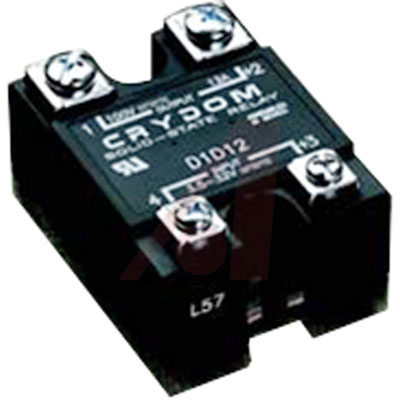

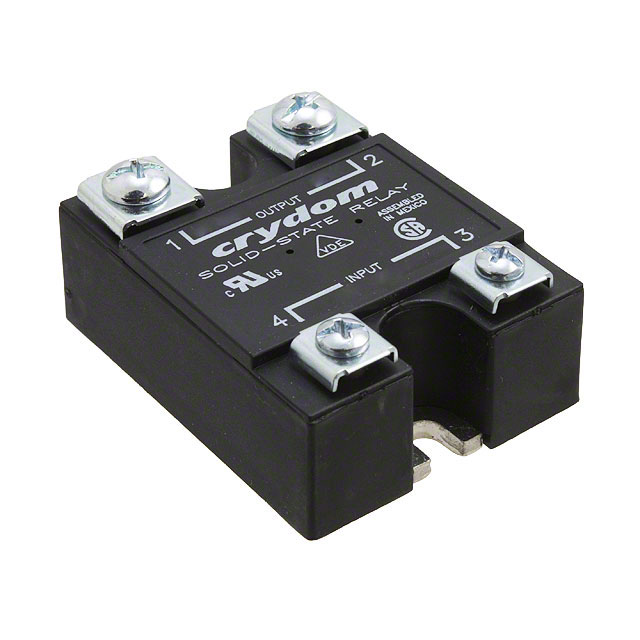

The is a Solid State Relay with aluminium base plate, UL94V-0 housing, SPST-NO contact, DC switch mode and screw terminals. This 1-DCL series panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barriers. EMC compliant to level-3.

.

Epoxy-free design

.

DC control

.

MOSFET Output

.

1VDC Maximum on-state voltage drop

.

3750Vrms Dielectric strength

.

Current regulated nominal input impedance

.

100µsec Turn-on/off maximum time

.

-40 to 100°C Ambient operating temperature range

Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
