Panel Mount - PowerPlus DCOptically Isolated MOSFET output AC and DC control Easily paralleled for higher-current applications LED status indicator Optional IP20 cover Manufacturer Part Numbers ending with a C ### 认可UL, CE### 直流切换

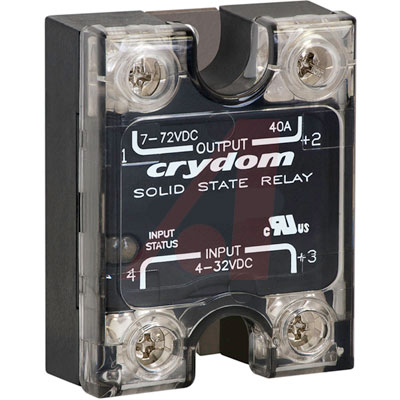

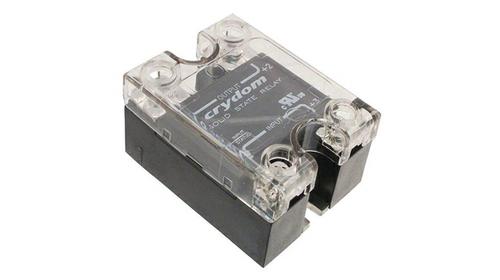

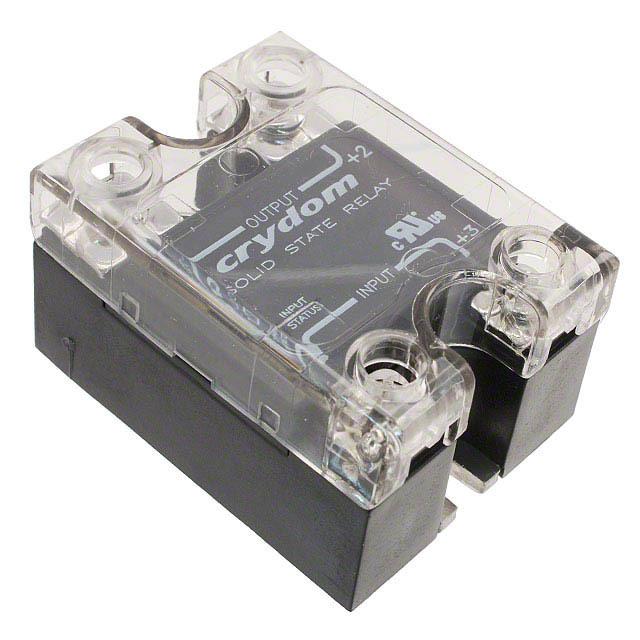

Panel Mount - PowerPlus DC
Optically Isolated MOSFET output
AC and DC control
Easily paralleled for higher-current applications
LED status indicator
Optional IP20 cover Manufacturer Part Numbers ending with a C
### 认可
UL, CE
欧时:
SSR, High Current,20A,4-32Vdc,IP20
艾睿:
Relay SSR 12mA 32V DC-IN 20A 72V DC-OUT 4-Pin
Allied Electronics:
SPST-NO Solid State Relay Screw Smnt, Instantaneous MOSFET, 20 A, 32 V dc
Chip1Stop:
Relay SSR 12mA 32V DC-IN 20A 72V DC-OUT 4-Pin
Newark:
# CRYDOM DC100D20C Solid State Relay, 20 A, Panel, Screw, 7 VDC, 72 VDC
MASTER:
Solid State Relay 12mA 32V DC-IN 20A 72V DC-OUT 4-Pin
Electro Sonic:
Solid State Relay 12mA 32V DC-IN 20A 72V DC-OUT 4-Pin
Win Source:
SSR RELAY SPST-NO 20A 1-72V / Solid State SPST-NO 1 Form A Hockey Puck
工作电压 72.0V max
负载电流 20 A
输入电流 11mA ~ 14mA
隔离电压 2500 Vrms
输入电压Max 32 V
输入电压Min 4 V
输出电压Max 72 V
输出电流Max 20 A
输入电流Min 12 mA
负载电流Max 20 A
负载电流Min 2.5 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
工作电压Min 7 VDC
工作电压Max 72 VDC
输入电压 4VDC ~ 32VDC
安装方式 Surface Mount
引脚数 4
封装 Hockey Puck
长度 58.2 mm
高度 32.9 mm
封装 Hockey Puck
工作温度 -30℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536490080
