D4D12L概述

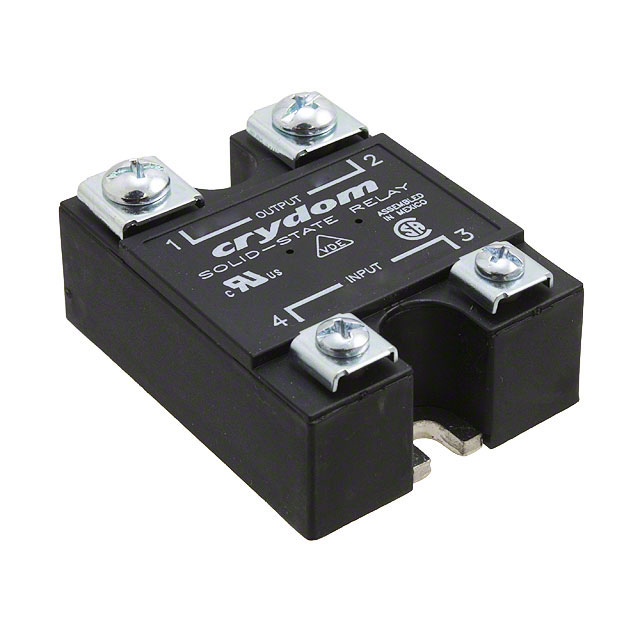

Relay SSR 10.6mA 32V DC-IN 12A 400V DC-OUT 4Pin
DC output relays feature MOSFET technology for low on-state resistance, assuring easy paralleling and switching capabilities to 40 A at 100 VDC. Lower current models are also available to 500 VDC. All models come in "s standard panel-mount package. Operating Temperature Range is from –40°C to 80°C.- .
- *
Features
**
* DC Output, Low On-State Resistance**
**
* Paralleling Capability for Higher Currents**
**
* UL Approved on 100 V Models Only**
**
* Optically Isolated
D4D12L中文资料参数规格
技术参数
工作电压 3.5VAC ~ 32VAC
输出电流 12000 mA
触点类型 SPST-NO
负载电流 12 A
输入电流 10.6 mA
隔离电压 2500 v
输入电压Max 32 V
输入电压Min 3.5 V
输出电压Max 400 V
输出电流Max 12 A
输入电流Min 10.6 mA
工作温度Max 80 ℃
工作温度Min -40 ℃
工作电压Min 0 VDC
工作电压Max 400 VDC
输入电压 32 V
封装参数
安装方式 Screw
引脚数 4
封装 Hockey Puck
外形尺寸
封装 Hockey Puck
其他
产品生命周期 Not For New Designs
包装方式 Bulk
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
海关信息
ECCN代码 EAR99
HTS代码 8536490080
