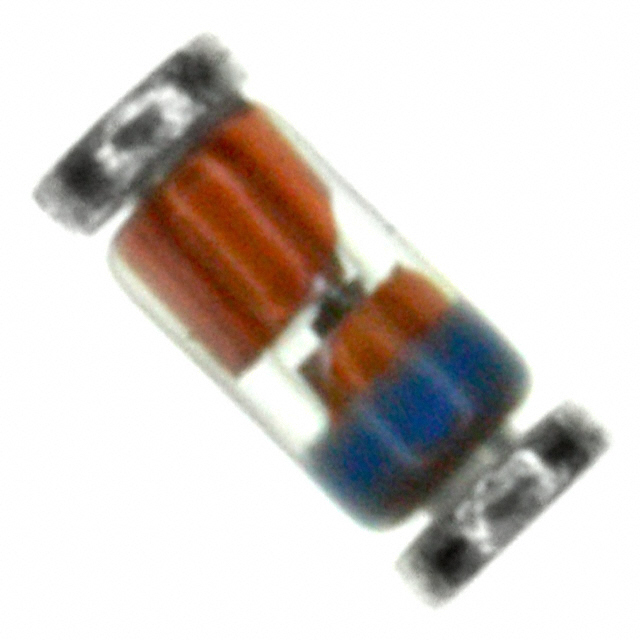

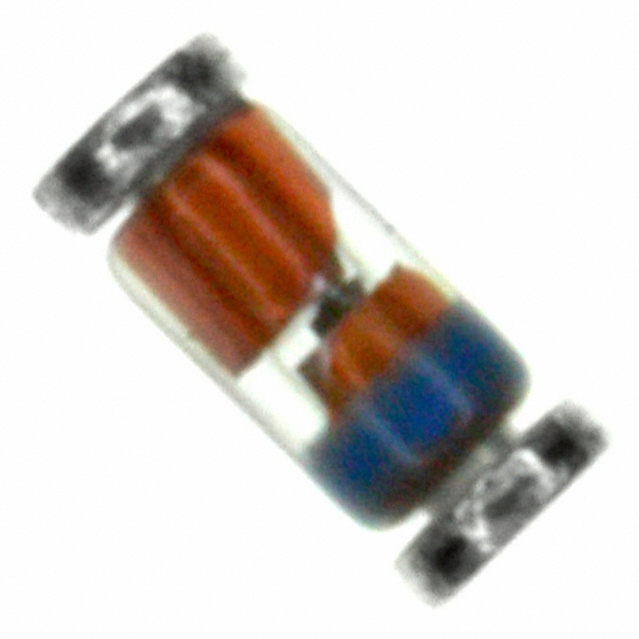

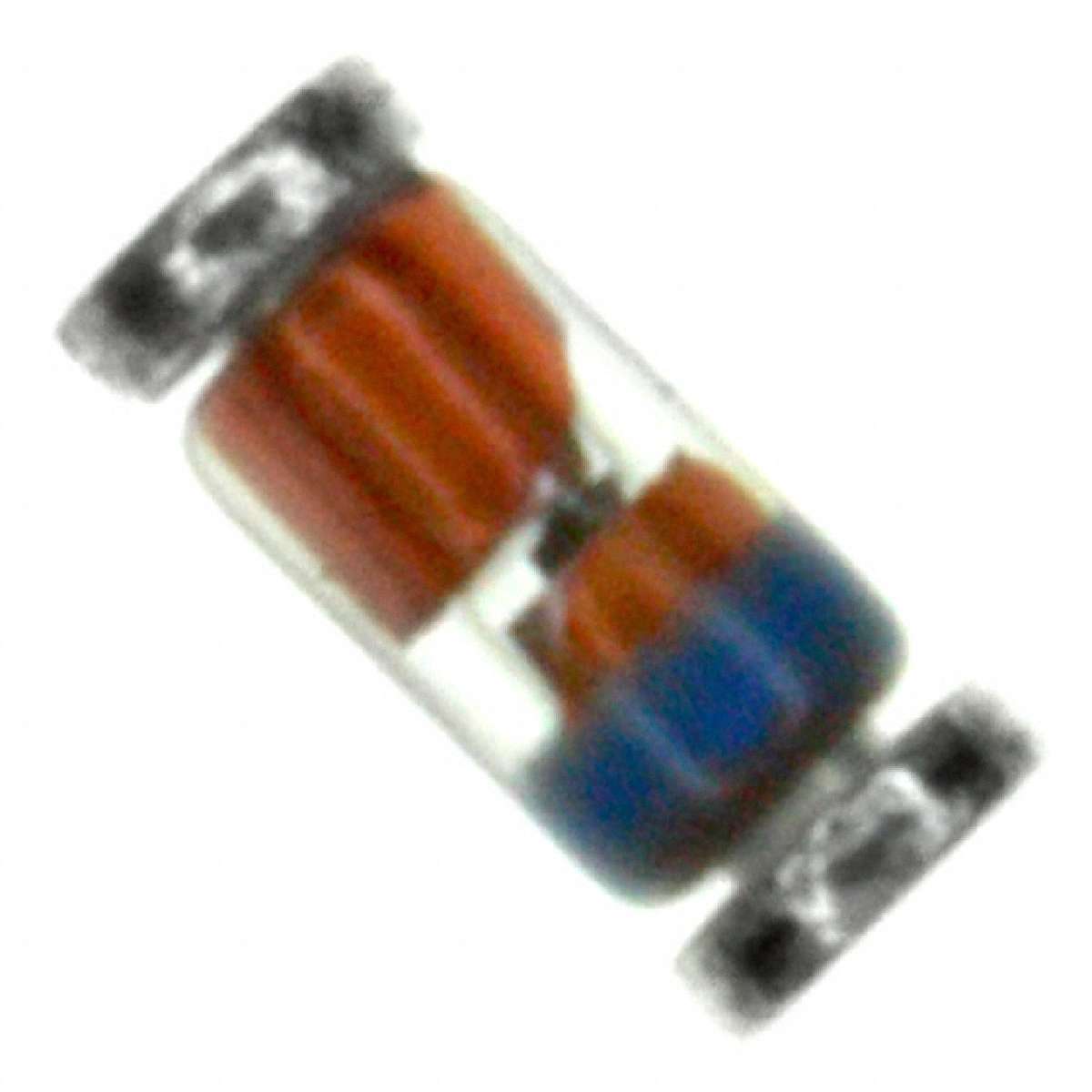

稳压二极管 500mW 5.6V
- 齐纳 5.6 V 500 mW ±5% 表面贴装型 迷你型 MELF
得捷:
DIODE ZENER 5.6V 500MW MINI MELF
贸泽:
稳压二极管 500mW 5.6V
艾睿:
This DL5232B-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. Its maximum power dissipation is 500 mW. Its maximum leakage current is 5 μA. Its test current is 20 mA. This zener device has a nominal voltage of 5.6 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C.
Chip1Stop:
Diode Zener Single 5.6V 5% 500mW 2-Pin Mini-MELF
Verical:
Zener Diode Single 5.6V 5% 11Ohm 500mW 2-Pin Mini-MELF T/R
Win Source:
DIODE ZENER 5.6V 500MW MINI MELF / Zener Diode 5.6 V 500 mW ±5% Surface Mount Mini MELF
容差 ±5 %
正向电压 1.1V @200mA
耗散功率 500 mW
测试电流 20 mA
稳压值 5.6 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2

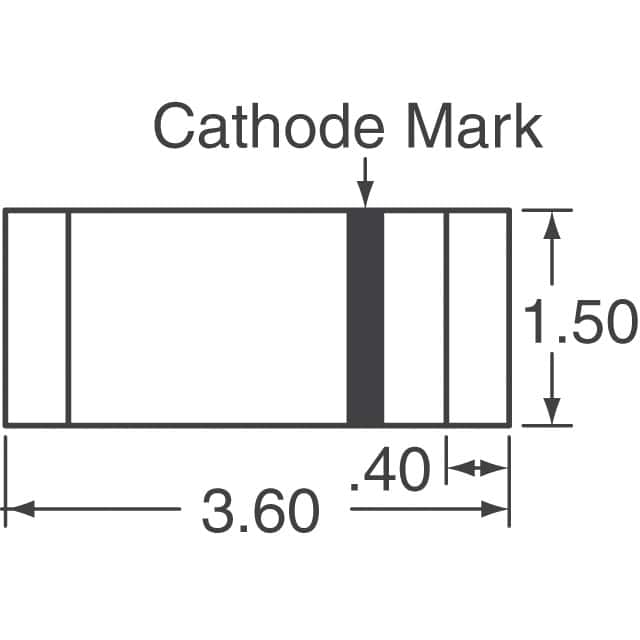

封装 Mini-MELF
长度 3.6 mm
宽度 1.5 mm
高度 1.5 mm
封装 Mini-MELF
工作温度 -65℃ ~ 175℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DL5232B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMSZ5232BT1G 安森美 | 功能相似 | DL5232B-TP和MMSZ5232BT1G的区别 |
MMSZ4690T1G 安森美 | 功能相似 | DL5232B-TP和MMSZ4690T1G的区别 |
MMSZ5232BS-7-F 美台 | 功能相似 | DL5232B-TP和MMSZ5232BS-7-F的区别 |
