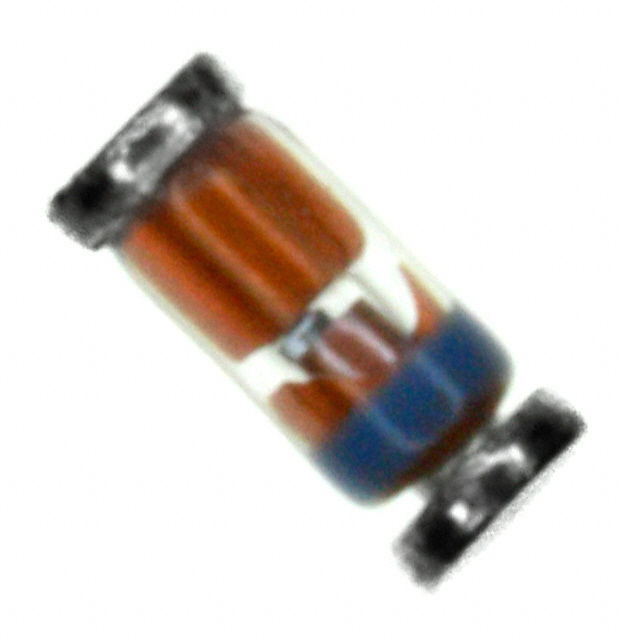

4.7 V,5% 500 mW 表面贴装 齐纳二极管 - MiniMELF-2
- 齐纳 ±5% 表面贴装型 迷你型 MELF
得捷:
DIODE ZENER 4.7V 500MW MINI MELF
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this DL5230B-TP zener diode from Micro Commercial Components is exactly what you need. Its maximum leakage current is 5 μA. Its test current is 20 mA. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 4.7 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single configuration.
富昌:
4.7 V,5% 500 mW 表面贴装 齐纳二极管 - MiniMELF-2
Chip1Stop:
Diode Zener Single 4.7V 5% 500mW 2-Pin Mini-MELF T/R
Verical:
Diode Zener Single 4.7V 5% 500mW 2-Pin Mini-MELF T/R
容差 ±5 %
正向电压 1.1 V
耗散功率 0.5 W
测试电流 20 mA
稳压值 4.7 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 175 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 Mini-MELF
长度 3.6 mm
宽度 1.5 mm
高度 1.5 mm
封装 Mini-MELF
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DL5230B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMSZ5230BT1G 安森美 | 功能相似 | DL5230B-TP和MMSZ5230BT1G的区别 |
MMSZ5230B-TP 美微科 | 功能相似 | DL5230B-TP和MMSZ5230B-TP的区别 |
MMSZ5230BT1 安森美 | 功能相似 | DL5230B-TP和MMSZ5230BT1的区别 |
