LINEAR TECHNOLOGY DC1725A 演示板, LT3759 稳压器, 负电压

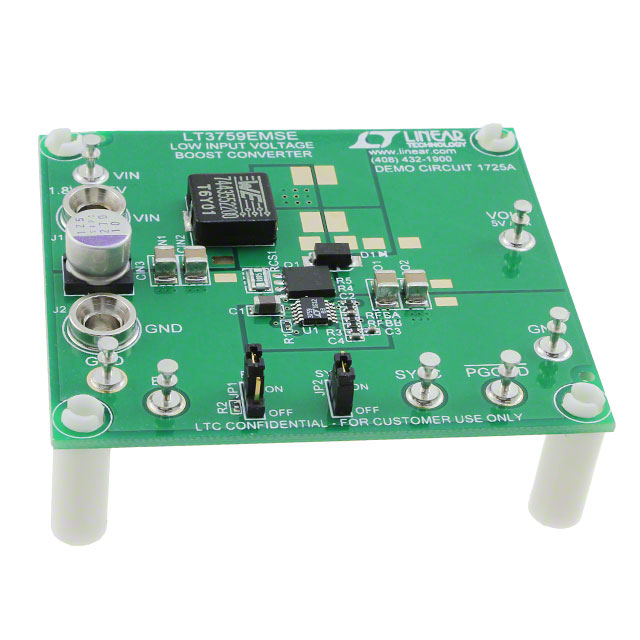

The is a Demonstration Board for LT3759 a 485kHz boost converter. The board is designed for a 5V/2A output from a 1.8 to 4.5V input. The demo circuit configures the shutdown voltage at typical 1.70V, which means that the input voltage can be dropped to as low as 1.70V, once it starts up. The start-up voltage is set at 2.5V but can be adjusted by changing R1 and R2 values.
贸泽:
电源管理IC开发工具 LT3759EMSE Boost Demo Board VIN = 1.8V to 4.5V, V OUT = 5V @ 2A
e络盟:
LINEAR TECHNOLOGY DC1725A 演示板, LT3759 稳压器, 负电压
艾睿:
LT3759 DC to DC Controller 4.85VDC to 5.15VDC Output Demonstration Circuit
Newark:
# LINEAR TECHNOLOGY DC1725A Demonstration Board for DC-DC Inverting Regulator, Input Voltage Range of 1.6V to 42V
