1个PNP-预偏置 100mA 50V
- 双极 BJT - 单,预偏置 PNP - 预偏压 50 V 100 mA 250 MHz 200 mW 表面贴装型 SOT-323
立创商城:
1个PNP-预偏置 100mA 50V
得捷:
TRANS PREBIAS PNP 200MW SOT323
贸泽:
Bipolar Transistors - Pre-Biased PNP 22KOhms 250MHz
艾睿:
In addition to offering some of the benefits of traditional BJTs, the PNP DTA124EUA-TP digital transistor, developed by Micro Commercial Components, can be used in digital signal processing circuits as well. This product&s;s maximum continuous DC collector current is 100Typ mA, while its minimum DC current gain is 56@5mA. Its maximum power dissipation is 200 mW. It has a maximum collector emitter voltage of 50Typ V. It is made in a single configuration. This transistor has a minimum operating temperature of -55 °C and a maximum of 150Typ °C.
DeviceMart:
TRANS DGTL PNP 200MW SOT-323
额定电压DC -50.0 V
额定电流 -100 mA
极性 PNP
耗散功率 200 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 56 @5mA, 5V
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 250 MHz
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

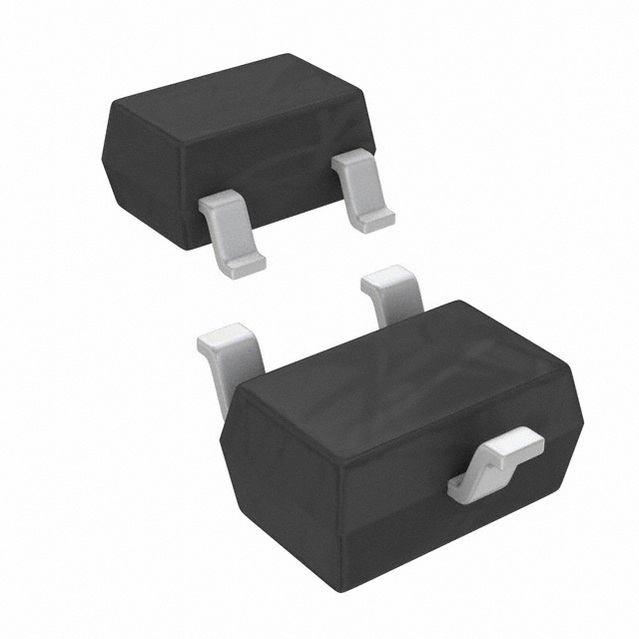

封装 SOT-323
封装 SOT-323
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DTA124EUA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
DTA124EKAT146 罗姆半导体 | 功能相似 | DTA124EUA-TP和DTA124EKAT146的区别 |
DTA124EETL 罗姆半导体 | 功能相似 | DTA124EUA-TP和DTA124EETL的区别 |
DTA124EMT2L 罗姆半导体 | 功能相似 | DTA124EUA-TP和DTA124EMT2L的区别 |
