电源管理IC开发工具 LTM8031EV Demo Board Ultralow EMI 36V, 1A uModule Regulator

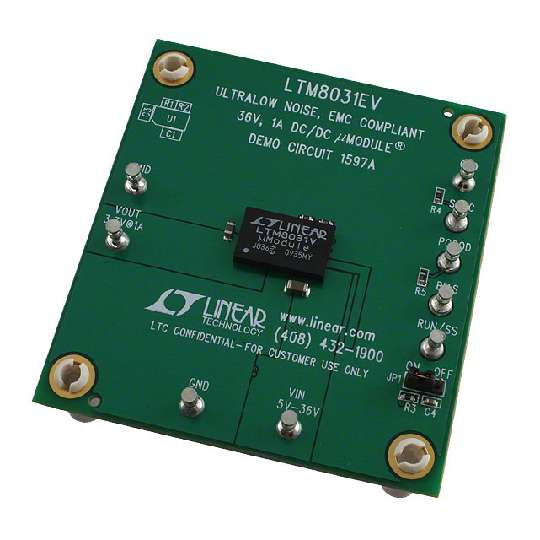

The demonstration board features LTM8031EV DC to DC µModule regulator. The LTM8031EV is an electromagnetic compatible EMC 36V, 1A DC to DC µModule buck converter designed to meet the radiated emissions requirements of EN55022. Conducted emission requirements can be met by adding standard filter components. Included in the IC package are the switching controller, power switches, inductor, filters and all support components. The LTM8031EV is configured to deliver a 3.3V output from a 5V to 36V input with a 750KHz operating frequency. Under light load conditions, the LTM8031EV enters burst mode operation to deliver high efficiency over a broad current range and maintain low output ripple.
- .
- Maximum output current of 1A
- .
- Current mode control
- .
- Programmable soft start
If there is no output, temporarily disconnect the load to make sure that the load is not set too high.
