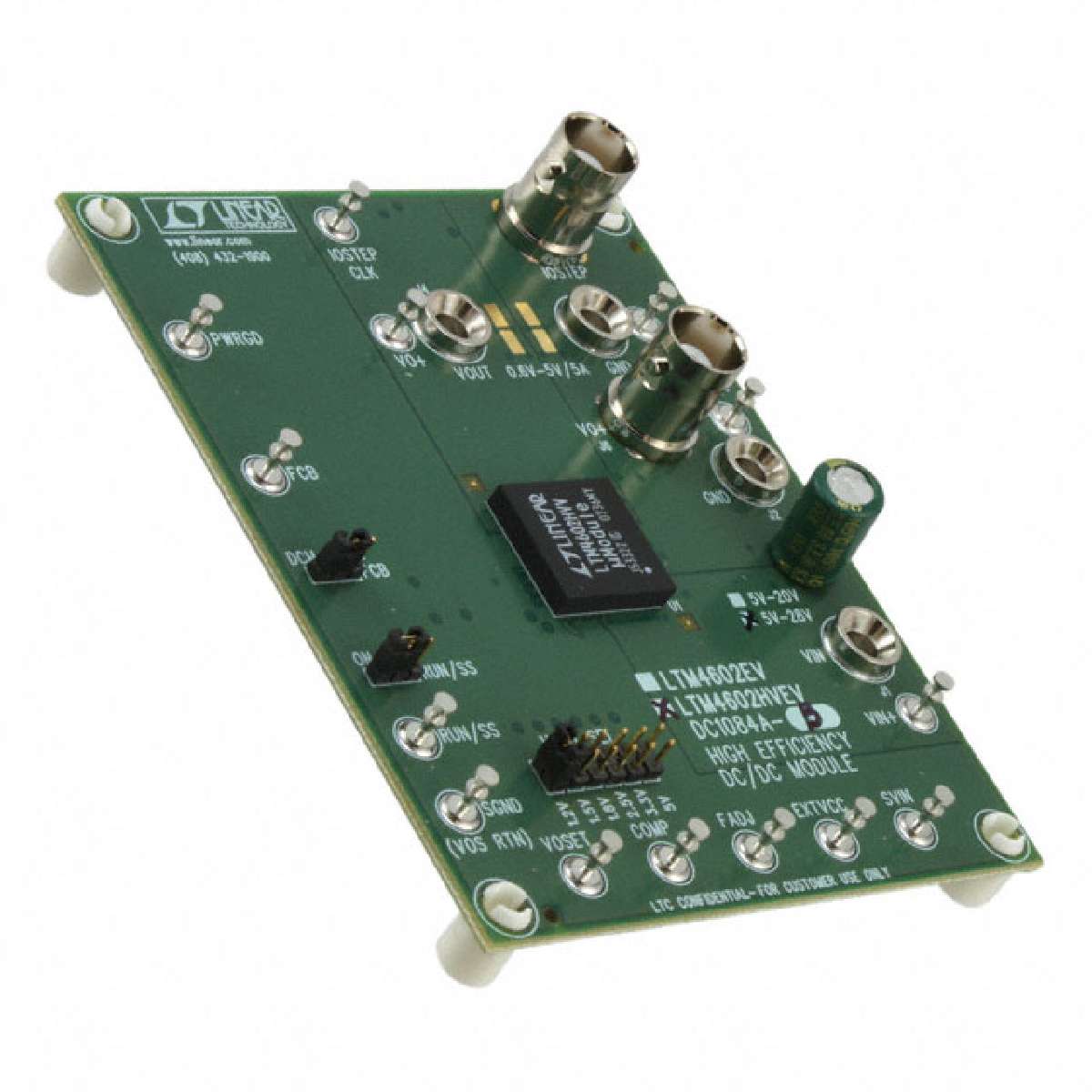

Evaluation Board, Ltm4602 6A Step-Down Regulator
The is an demonstration board populated with LTM4602HVEV high efficiency, high density µModule regulator. The LTM4602HVEV is a complete 6A, DC to DC step down power supply with up to 28V input operation. Included in the IC package are the switching controller, power FETs, inductor and all support components. The high efficiency design delivers 6A continuous current, needing no heat sinks or airflow to meet power specifications. The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. High switching frequency and an adaptive ontime current mode architecture enables a very fast transient response to line and load changes without sacrificing stability. The input voltage range is from 4.5V to 28V. The output voltage is jumper programmable from 0.6V to 5V. The rated load current is 6A, while derating is necessary for certain VIN, VOUT and thermal conditions.
- .
- Default operating frequency of 800KHz
- .
- Ultrafast transient response
- .
- Parallel µModule DC to DC converters
- .
- Programmable soft start
- .
- Output overvoltage protection
- .
- Optional short circuit shutdown timer
- .
- 1.5% output voltage regulation
