DC1802A概述

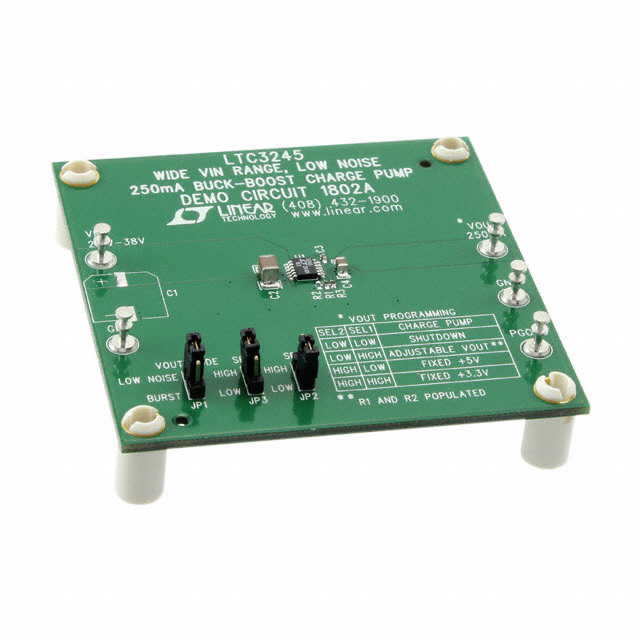

LTC3245EMSE Charge Pump 3.168VDC to 3.432VDC/4.8VDC to 5.2VDC Output Demonstration Circuit

The demonstration circuit is a wide VIN range, low noise, 250mA buck boost charge pump featuring LTC3245EMSE device. The LTC3245EMSE is a switched capacitor buck boost DC to DC converter that produces a regulated output 3.3V, 5V or adjustable from a 2.7V to 38V input. The device uses switched capacitor fractional conversion to maintain regulation over a wide range of input voltage. Internal circuitry automatically selects the conversion ratio to optimize efficiency as input voltage and load conditions vary. No inductors are required. The unique constant frequency architecture provides a lower noise output than conventional charge pump regulators. To optimize efficiency at the expense of slightly higher output ripple, the device has pin selectable burst mode operation.

.
Output voltage VOUT1 from 4.80V to 5.20V
.
Output voltage VOUT2 from 3.168V to 3.432V
.
Low noise, constant frequency operation
.
Pin selectable burst mode operation
.
Overtemperature and short circuit protection
DC1802A中文资料参数规格
技术参数

输出接口数 2

输出电流 250mA, 250mA

开关频率 450 kHz

输入电压 2.7V ~ 38V

其他

产品生命周期 Active

制造应用 Industrial, Automotive, 工业, 车用, 通信与网络, Communications & Networking, 电源管理, Power Management

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买DC1802A
型号: DC1802A
制造商: Linear Technology 凌力尔特
描述:LTC3245EMSE Charge Pump 3.168VDC to 3.432VDC/4.8VDC to 5.2VDC Output Demonstration Circuit
