1个NPN-预偏置 100mA 50V
Are you designing a digital processing circuit and are looking to apply the characteristics of traditional BJT"s within? Look no further than the NPN digital transistor from . This product"s maximum continuous DC collector current is 100Typ mA, while its minimum DC current gain is 56@5mA@5 V. It has a maximum collector emitter voltage of 50Typ V. Its maximum power dissipation is 200Typ mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This transistor has an operating temperature range of -55 °C to 150Typ °C.
额定电压DC 50.0 V
额定电流 100 mA
极性 NPN
耗散功率 200 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 56 @5mA, 5V
额定功率Max 200 mW
工作温度Min -55 ℃
增益带宽 250 MHz
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

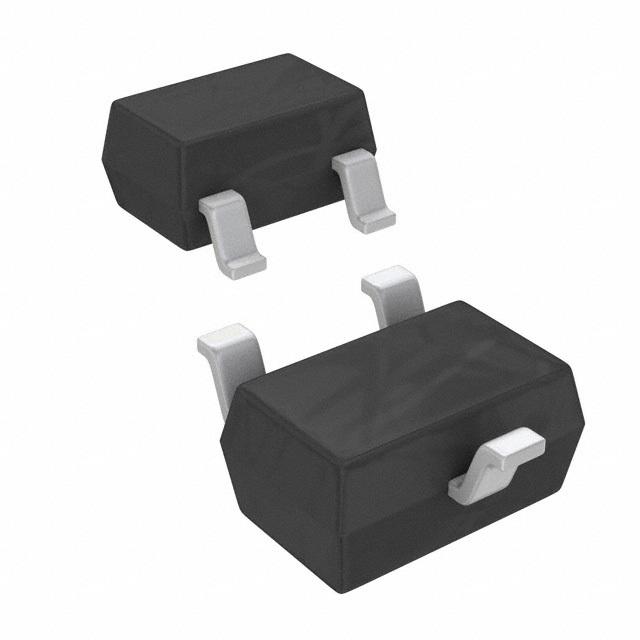

封装 SOT-323
封装 SOT-323
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
