DP83848VYB

PHYTER 扩展温度单端口 10/100 Mb/s 以太网物理层收发器

The number of applications requiring Ethernet connectivity continues to increase, driving Ethernet enabled devices into harsher environments.

The DP83848C/I/VYB/YB was designed to meet the challenge of these new applications with an extended temperature performance that goes beyond the typical Industrial temperature range. The DP83848C/I/VYB/YB is a highly reliable, feature rich, robust device which meets IEEE 802.3 standards over multiple temperature ranges from commercial to extreme temperatures. This device is ideally suited for harsh environments such as wireless remote base stations, automotive/transportation, and industrial control applications.

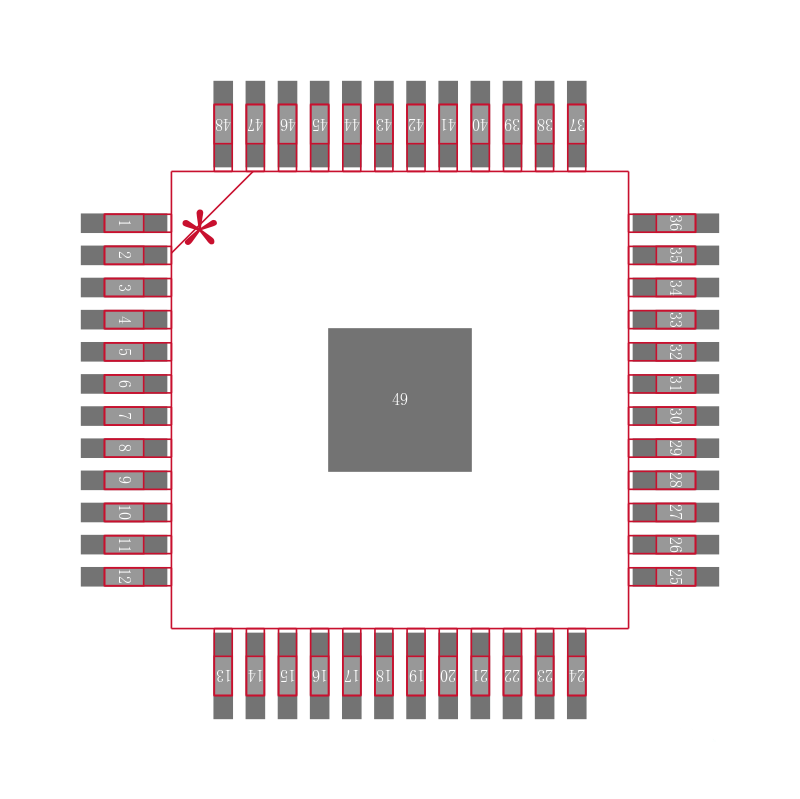

It offers enhanced ESD protection and the choice of an MII or RMII interface for maximum flexibility in MPU selection; all in a 48 pin package.

The extends the leadership position of the PHYTER™ family of devices with a wide operating temperature range. The line of PHYTER transceivers builds on decades of Ethernet expertise to offer the high performance and flexibility that allows the end user an easy implementation tailored to meet these application needs.

.

Multiple Temperature Range from –40°C to 105°C

.

Low-Power 3.3-V, 0.18-µm CMOS Technology

.

Low-Power Consumption < 270 mW Typical

.

3.3-V MAC Interface

.

Auto-MDIX for 10/100 Mb/s

.

Energy Detection Mode

.

25-MHz Clock Output

.

SNI Interface Configurable

.

RMII Rev. 1.2 Interface Configurable

.

MII Serial Management Interface MDC and MDIO

.

IEEE 802.3 MII

.

IEEE 802.3 Auto-Negotiation and Parallel

Detection

.

IEEE 802.3 ENDEC, 10BASE-T Transceivers and

Filters

.

IEEE 802.3 PCS, 100BASE-TX Transceivers and

Filters

.

IEEE 1149.1 JTAG

.

Integrated ANSI X3.263 Compliant TP-PMD

Physical Sub-Layer with Adaptive Equalization and

Baseline Wander Compensation

.

Error-Free Operation up to 150 Meters

.

Programmable LED Support for Link, 10/100 Mb/s

Mode, Activity, Duplex and Collision Detect

.

Single Register Access for Complete PHY Status

.

10/100 Mb/s Packet BIST Built in Self Test
