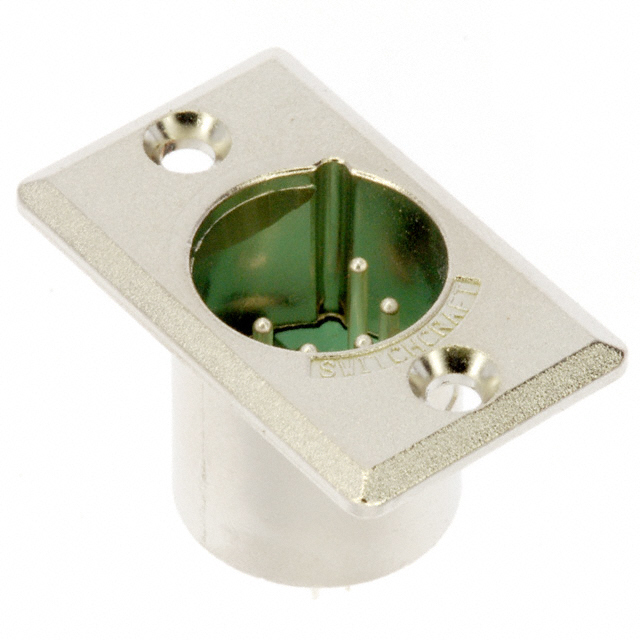

D5M图片1

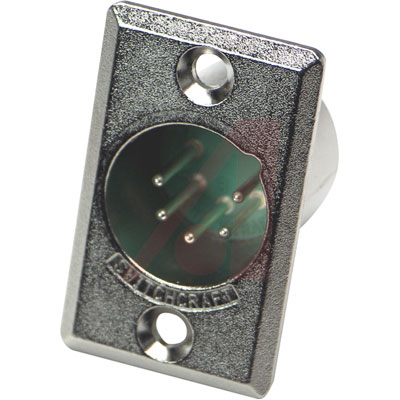

D5M图片2
D5M图片3
D5M图片4
D5M图片5
D5M图片6
D5M图片7
D5M图片8
D5M图片9
D5M图片10
D5M图片11
D5M图片12
D5M图片13
D5M概述

Conn XLR Connector M 5POS Solder ST Panel Mount 5 Terminal 1Port

Q-G® XLR Receptacle

Plugs and receptacles offer up to 5-contact versatility by means of up to four circuit contacts plug electrically integrated ground terminal on shell. Neoprene cable strain relief bushing keyed to shell; ribbed for easy access to male plugs. Die-cast zinc alloy with satin-nickel finish. Receptacles will mate with all standard audio connectors. Right angle configuration reduces “cable clutter."

Receptacle is designed for low/stable contact resistance and withstands corrosion where highest quality is required for recording and broadcast studio equipment, consoles, and other applications.

D5M中文资料参数规格
技术参数

触点数 5

极性 Male

触点电镀 Gold

额定电压DC 125 V

额定电流 500 mA

针脚数 5

安装角度 180 °

额定电压 125 VAC

封装参数

安装方式 Panel, Solder

封装 Metal

外形尺寸

长度 20.6502 mm

高度 36.32 mm

直径 18.9 mm

封装 Metal

物理参数

颜色 Black

触点材质 Silver

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买D5M
型号: D5M
制造商: Switchcraft / Conxall
描述:Conn XLR Connector M 5POS Solder ST Panel Mount 5 Terminal 1Port
