DTC143TET1G

偏置电阻晶体管 Bias Resistor Transistor

Bias Resistor Transistor

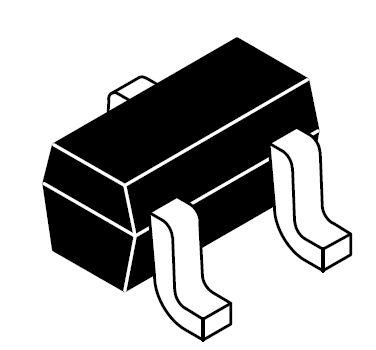

NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network

This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT Bias Resistor Transistor contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SC−75/SOT−416 package which is designed for low power surface mount applications.

Features

• Simplifies Circuit Design

• Reduces Board Space

• Reduces Component Count

• The SC−75/SOT−416 Package Can be Soldered Using Wave or Reflow

• The Modified Gull−Winged Leads Absorb Thermal Stress During Soldering Eliminating the Possibility of Damage to the Die

• Pb−Free Packages are Available

• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
