DSPIC30F 数字信号控制器 dsPIC30F 数字信号控制器提供 DSP 性能的同时简化了 MCU。 dsPIC30F 最适用于受益于广泛的工作电压(2.5 至 5.5 V)、极低待机电流、集成 EEPROM 的应用以及因系统顾虑而选择 5V 操作的设计师。 30MIPS dsPIC30F 变体集成了 SMPS 外设、电动机控制外设和编解码器接口,为高效数字功率转换器,高级电动机控制算法以及语音和音频应用提供支持。 小封装 DSC具有高性能 ADC,非常适合智能感应应用。 dsPIC® 数字信号控制器 dsPIC 数字信号控制器具有与 16 位 PIC24 微控制器系列相同的基本内部架构和指令集,而且添加了额外的 DSP 硬件及相关指令。 dsPIC 具有低中断延迟:快速响应实时事件 大多数指令只需一个时钟周期即可执行 单周期 16 x 16 乘法指令 除法说明 DSP 引擎带 40 位蓄电池 零耗程序循环的 REPEAT 和 DO 回路硬件 指令集为 C 编译器进行了优化 柔性高速低功耗一体式振荡器,带能消除对外部晶体需求的 PLL 电源开启重置和故障保护时钟监控器
DSCs blend the features of both MCUs and DSPs into a single-chip solution enabling you to add DSP features to your embedded application. offers two compatible Flash-based 16-bit DSC families. The 30 MIPS dsPIC30F family is designed for applications where 5 V operation is important, and the 40 MIPS dsPIC33F family is suited for applications preferring 3.3 V or need more on-chip memory.
Both DSC families and the PIC24 families have the same base instruction set DSCs add DSP instructions, share basic peripherals, have common pinouts and use the same tools for development. The 30 MIPS dsPIC30F family is developed for applications that benefit from a wide operating voltage 2.5 to 5.5 Volts, extremely low standby current, integrated EEPROM, and for those that prefer 5 V operation due to system considerations.
* Standard Flash Memory
* 30 MIPS
* 2.5-5.5 V
* Self-Write Function
频率 20 MHz
电源电压DC 5.00 V, 5.50 V max
工作电压 2.5V ~ 5.5V
时钟频率 40.0MHz max
RAM大小 1K x 8
位数 16
I/O引脚数 20
内核架构 dsPIC
模数转换数ADC 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 28

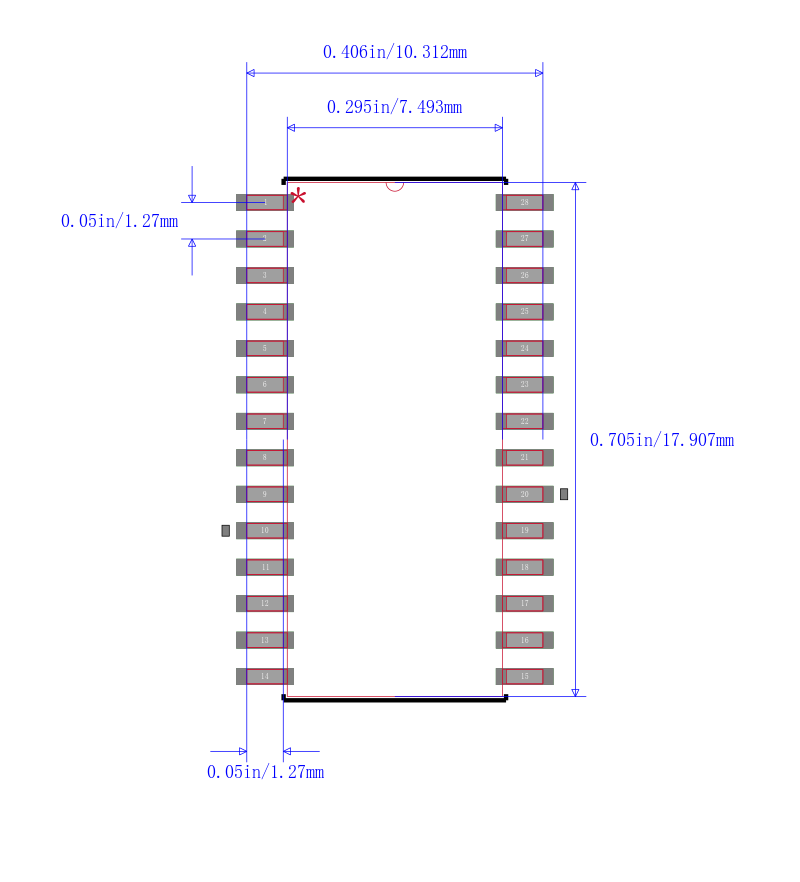

封装 SOIC-28
长度 17.9 mm
宽度 7.49 mm
高度 2.35 mm
封装 SOIC-28
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DSPIC30F3010-20E/SO Microchip 微芯 | 当前型号 | 当前型号 |
DSPIC30F3010T-20E/SO 微芯 | 完全替代 | DSPIC30F3010-20E/SO和DSPIC30F3010T-20E/SO的区别 |
DSPIC30F3010-20I/SO 微芯 | 类似代替 | DSPIC30F3010-20E/SO和DSPIC30F3010-20I/SO的区别 |
