DSPIC33FJ128GP804-H/PT

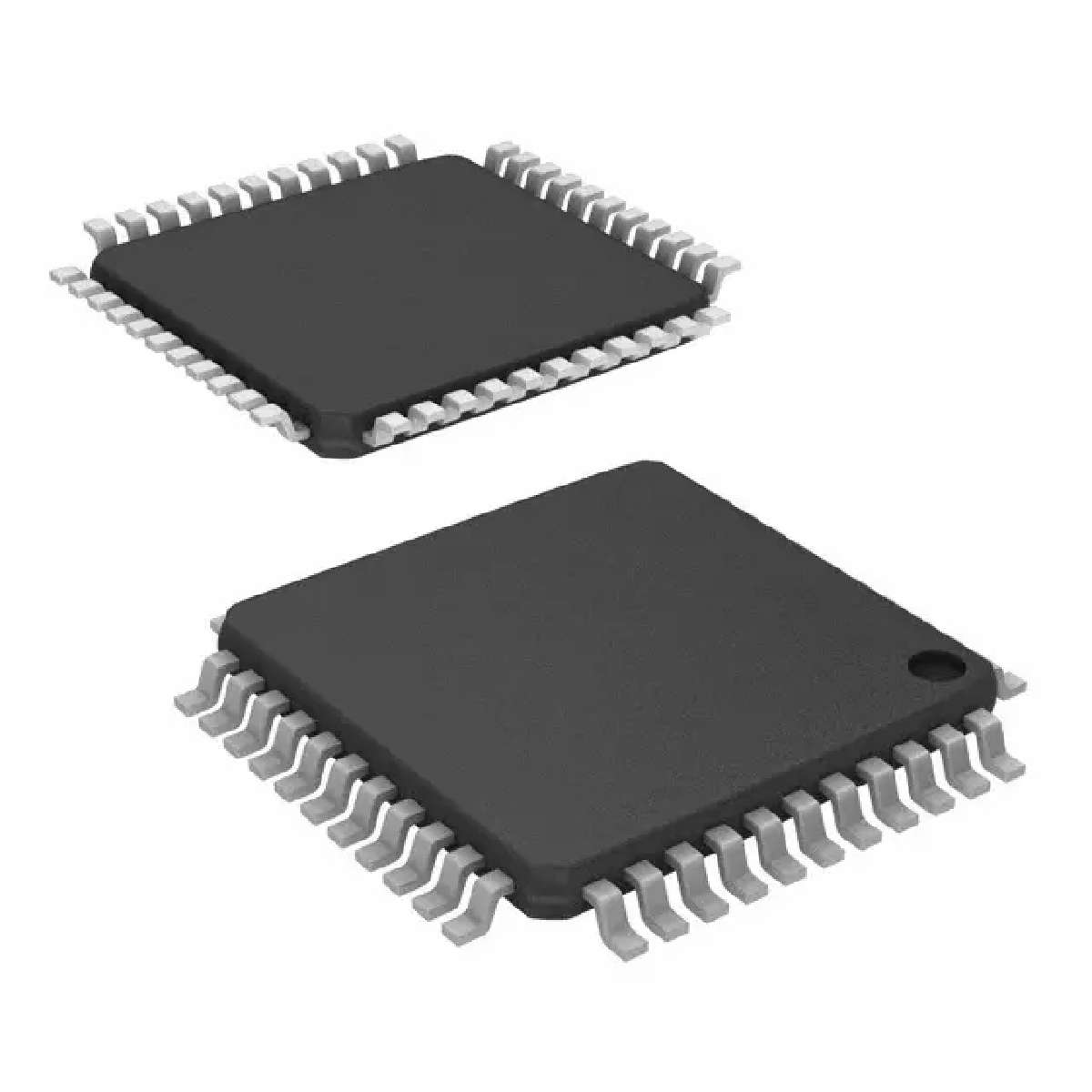

DSPIC33FJ128GP804-H/PT图片1

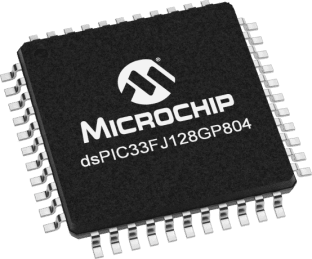

DSPIC33FJ128GP804-H/PT图片2

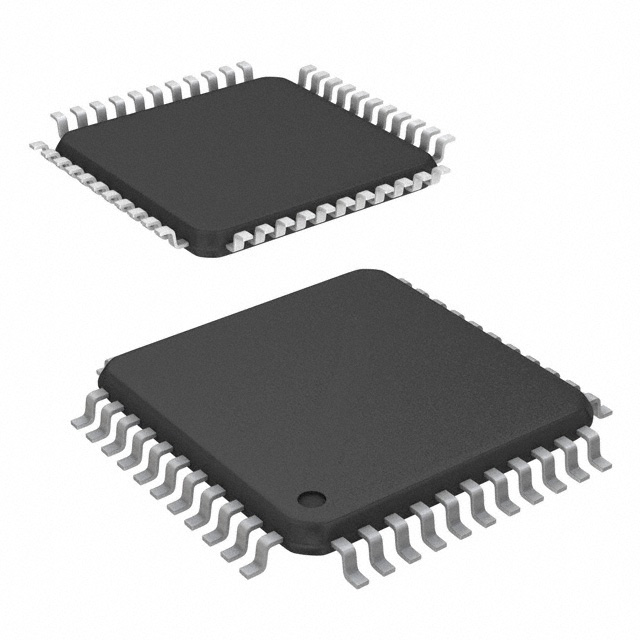

DSPIC33FJ128GP804-H/PT图片3

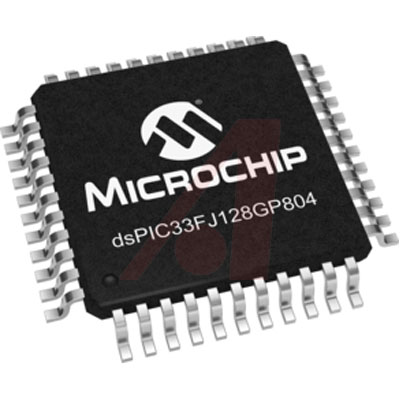

DSPIC33FJ128GP804-H/PT图片4
DSPIC33FJ128GP804-H/PT图片5
DSPIC33FJ128GP804-H/PT图片6
DSPIC33FJ128GP804-H/PT图片7
DSPIC33FJ128GP804-H/PT图片8
DSPIC33FJ128GP804-H/PT图片9
DSPIC33FJ128GP804-H/PT图片10
DSPIC33FJ128GP804-H/PT概述

MCU 16Bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 44Pin TQFP Tube

This document contains device specific information for the dsPIC33FJ32GP302/304, dsPIC33FJ64GPX02/ X04, and dsPIC33FJ128GPX02/X04 Digital Signal Controller DSC Devices. The dsPIC33F devices contain extensive Digital Signal Processor DSP functionality with a high performance 16-bit microcontroller MCU architecture.


艾睿:
MCU 16-bit dsPIC33F dsPIC RISC 128KB Flash 3.3V Automotive 44-Pin TQFP Tray


Allied Electronics:
16-bit DSC, 128KB Flash, CAN, DMA, 40 MIPS, nanoWatt


安富利:
MCU 16-bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 44-Pin TQFP Tube


Chip1Stop:
MCU 16-bit dsPIC33F dsPIC RISC 128KB Flash 3.3V 44-Pin TQFP Tube


DSPIC33FJ128GP804-H/PT中文资料参数规格
技术参数

RAM大小 16 KB

位数 16

模数转换数ADC 2

工作温度Max 150 ℃

工作温度Min -40 ℃

数模转换数DAC 1

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 44

封装 TQFP-44

外形尺寸

宽度 10 mm

封装 TQFP-44

物理参数

工作温度 -40℃ ~ 150℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

DSPIC33FJ128GP804-H/PT引脚图与封装图
DSPIC33FJ128GP804-H/PT引脚图
DSPIC33FJ128GP804-H/PT封装图
DSPIC33FJ128GP804-H/PT封装焊盘图
在线购买DSPIC33FJ128GP804-H/PT
型号: DSPIC33FJ128GP804-H/PT
制造商: Microchip 微芯
描述:MCU 16Bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 44Pin TQFP Tube
