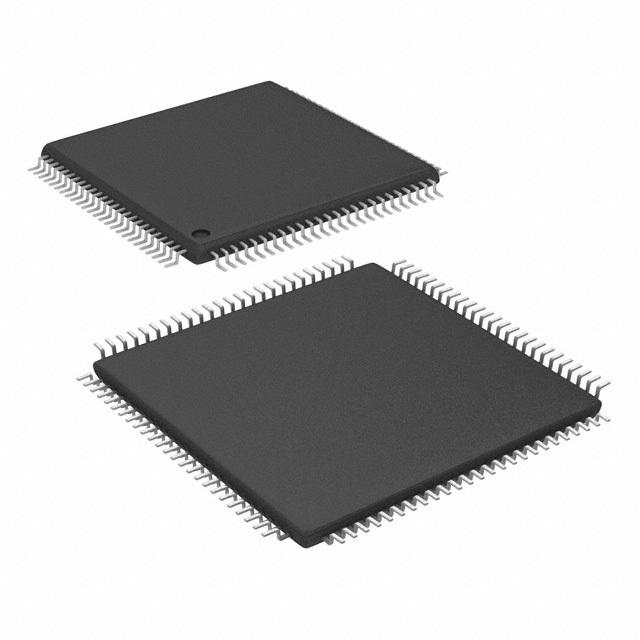

DSPIC33EP512MU810-E/PF

100Pins, 512KB Flash, 52KB RAM, 60MHz, USB, 2xCAN, 15 DMA, 100 TQFP 14x14x1mm TRAY

* **Operating Conditions** 3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS**Core: 16-bit dsPIC33E** Modified Harvard Architecture C Compiler Optimized Instruction Set 16-bit Wide Data Path 24-bit Wide Instructions 16x16 Integer Multiply Operations 32/16 and 16/16 Integer Divide Operations 11 Additional Instructions Two 40-bit Accumulators with Rounding and Saturation Options Flexible and Powerful Addressing modes Single-Cycle Multiply and Accumulate Single-Cycle shifts for up to 40-bit Data 16x16 Fractional Multiply/Divide Operations**Motor Control PWM** Two master time base modules can control dual 3-phase motors simultaneously Up to seven PWM generators Two PWM outputs per PWM generator 8.32 ns PWM resolution**Quadrature Encoder Interface QEI** 32-bit position counter 32-bit Index pulse counter**Advanced Analog Features** Two independent ADC modules: One ADC configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&Hs One 10-bit ADC, 1.1 Msps with four S&Hs Eight S&H using both ADC 10-bit moduless 24 analog channels 64-pin devices up to 32 analog channels 100/121/144-pin devicess Flexible and independent ADC trigger sourcess Comparators: Up to three Analog Comparator modules Programmable references with 32 voltage points **Timers / Capture / Compare / Standard PWM** 9 16-bit Timers/Counters. Unused Output compares can be used as standard times for a total of 25 timers 16 Input Capture 16 Output Compare/ PWM Hardware Real-Time Clock and Calendar Peripheral Pin Select PPS to allow function remap**Direct Memory Access DMA** 15-channel DMA with user-selectable priority arbitration UART, USB, SPI, ADC, ECAN, IC, OC, Timers, DCI/I2S, PMP**Note: Please refer to datasheet for a complete list of features**
