MCU 16Bit H8S CISC 64KB Flash 2.5V/3.3V 64Pin LQFP
H8S/2000 H8® H8S/2200 Microcontroller IC 16-Bit 24MHz 64KB 64K x 8 FLASH 64-LQFP 10x10
得捷:
IC MCU 16BIT 64KB FLASH 64LQFP
立创商城:

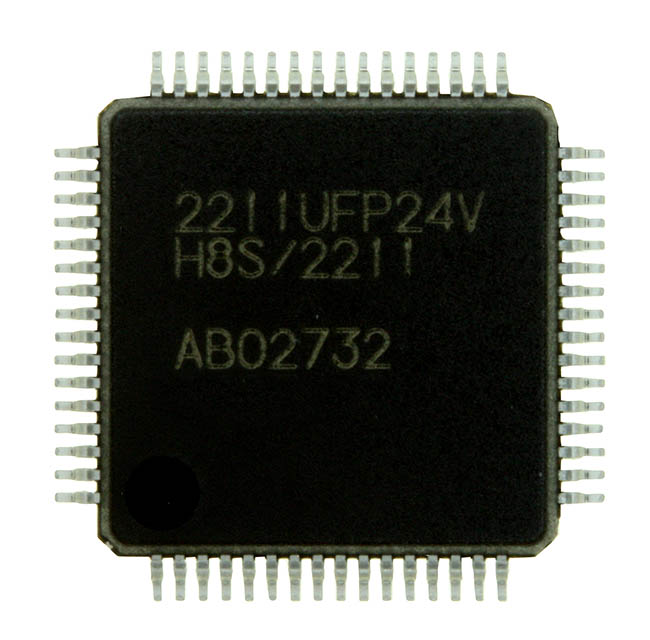

DF2211UFP24V
艾睿:
Need a strong device that can control other devices in your circuit design? Look no further. This DF2211UFP24V microcontroller manufactured by Renesas will meet and excel your needs. This microcontroller has an operating temperature range of -20 °C to 75 °C. It has a maximum clock speed of 24 MHz. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2.4|2.7|3 V, while its maximum is 3.6 V. Its flash program memory is 64KB. This is a 16 bit processor. Its ADC resolution is 10.
Chip1Stop:
MCU 16-bit H8S CISC 64KB Flash 2.5V/3.3V 64-Pin LQFP
Verical:
MCU 16-bit H8S/2000 CISC 64KB Flash 2.5V/3.3V 64-Pin LFQFP Tray
儒卓力:
**H8S/2200 64K QFP64 75°C **
频率 24 MHz
电源电压DC 3.30 V, 3.60 V max
时钟频率 24.0 MHz, 24.0 MHz max
RAM大小 8K x 8
位数 16, 32
FLASH内存容量 64 KB
I/O引脚数 37
存取时间 24.0 µs
模数转换数ADC 1
工作温度Max 75 ℃
工作温度Min -20 ℃
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
封装 LQFP-64
工作温度 -20℃ ~ 75℃ TA
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
