SMD /块型EMI静噪滤波器 SMD/BLOCK Type EMI Suppression Filters
2 Line Common Mode Choke Surface Mount 67 Ohms @ 100MHz 110mA DCR 3Ohm
得捷:
CMC 110MA 2LN 67 OHM SMD
立创商城:
67Ω@100MHz 110mA
艾睿:
Common Mode Chokes Dual 67Ohm 100MHz 110mA 2.4Ohm DCR SMD T/R
安富利:
Ind Common Mode Choke Thin Film 67Ohm 20% 100MHz 110mA 03025 Embossed T/R
富昌:
DLP Series 03025 67 Ohm 110 mA 2.4 Ohm DCR 5 V SMT Common Mode Choke
Chip1Stop:
Common Mode Chokes Dual 67Ohm 100MHz 110mA 2.4Ohm DCR SMD Embossed T/R
Verical:
Common Mode Chokes Dual 67Ohm 100MHz 0.11A 3Ohm DCR SMD T/R
儒卓力:
**DLP11SN 67R/100MHz 5V 110mA **
Win Source:
2 Line Common Mode Choke Surface Mount 67 Ohm @ 100MHz 110mA DCR 3 Ohm
额定电压DC 5 V
电阻 67.0 Ω
阻抗 67.0 Ω
测试频率 100 MHz
电阻DC) 2.4 Ω
额定电流Max 110 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 5 VDC
电阻DC Max 3 Ω
安装方式 Surface Mount

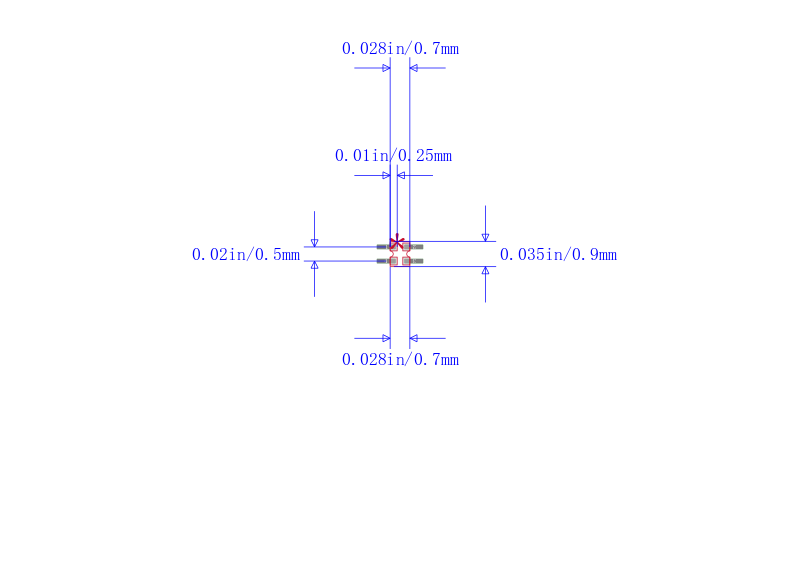

封装 0806
长度 0.9 mm
宽度 0.7 mm
高度 0.5 mm
封装 0806
重量 0.001 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
