其他系列 20MHz 32K@x8bit 2KB

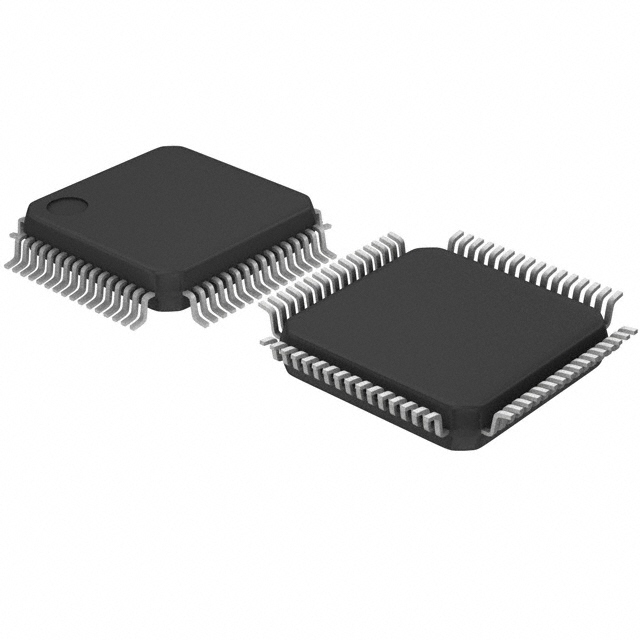

H8/300H series IC 16 位 20MHz 32KB(32K x 8) 闪存 64-LFQFP(10x10)
得捷:
IC MCU 16BIT 32KB FLASH 64LQFP
立创商城:
其他系列 20MHz 闪存:32K@x8bit RAM:2KB
艾睿:
Used in any modern day system or circuit design this DF36024GFPV microcontroller from Renesas, will make any design more versatile. This microcontroller has an operating temperature range of -20 °C to 75 °C. It has a maximum clock speed of 20 MHz. This device has a typical operating supply voltage of 3.3|5 V. Its minimum operating supply voltage of 3 V, while its maximum is 5.5 V. Its flash program memory is 32KB. This is a 16 bit processor. Its ADC resolution is 10.
安富利:
MCU 16-bit H8 CISC 32KB Flash 3.3V/5V 64-Pin LQFP
Chip1Stop:
MCU 16-Bit/32-Bit H8 CISC 32KB Flash 3.3V/5V 64-Pin LQFP
Verical:
MCU 16-bit H8/300H CISC 32KB Flash 3.3V/5V 64-Pin LFQFP
频率 20 MHz
电源电压DC 5.00 V, 5.50 V max
时钟频率 20.0 MHz, 20.0 MHz max
RAM大小 2K x 8
位数 16, 32
FLASH内存容量 32 KB
I/O引脚数 30
存取时间 20.0 µs
模数转换数ADC 1
工作温度Max 75 ℃
工作温度Min -20 ℃
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
封装 LQFP-64
工作温度 -20℃ ~ 75℃
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
