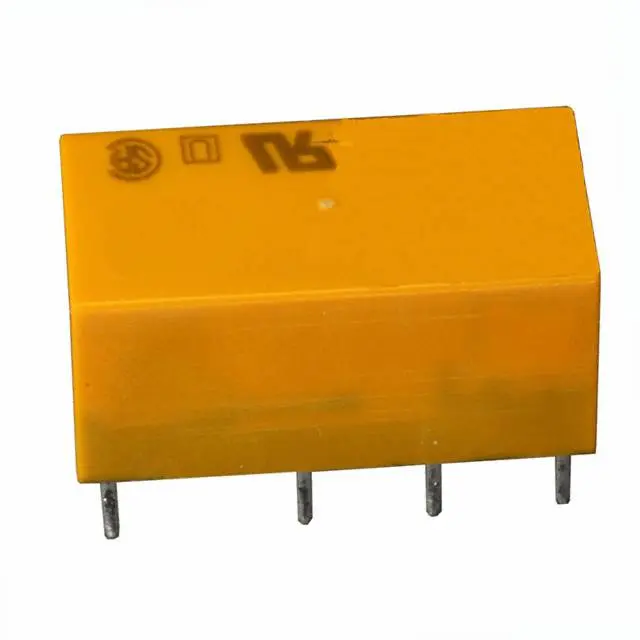

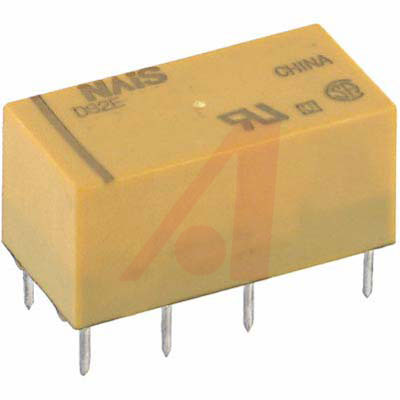

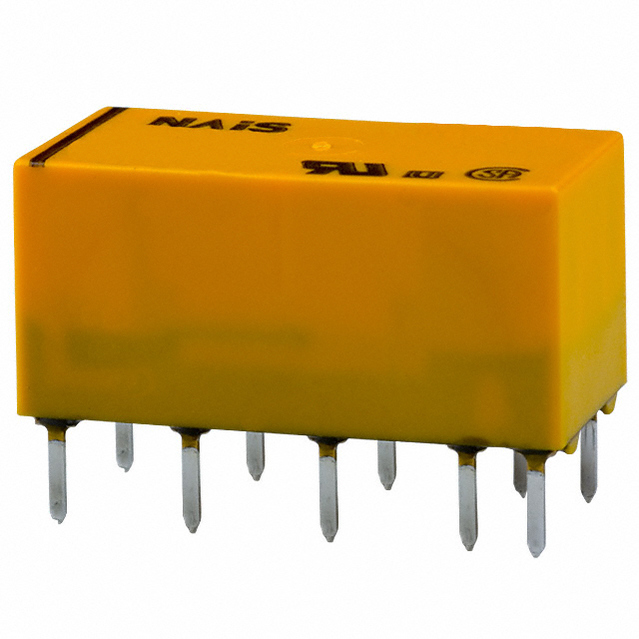

Electromechanical Relay DPDT 3A 12VDC 400Ω Through Hole
Sensitive Miniatur Relays, 220 VDC/250 VAC
* High sensitivity
* High switching capacity: 60 W, 125 VA
* High breakdown voltage: 1,500 V FCC surge between open, 1000 VAC between open contacts
* Bifurcated contacts are standard
得捷:
RELAY GEN PURPOSE DPDT 2A 12VDC
Allied Electronics:
Relay; 2 A AC⁄ DC Switching; 3 A AC⁄ DC Carrying; Amber Sealed Type
Chip1Stop:
Electromechanical Relay DPDT 3A 12VDC 400Ohm Through Hole
Electro Sonic:
Electromechanical Relay 12VDC 400Ohm 3A DPDT 20x9.9x9.9mm THT General Purpose Relay
Win Source:
General Purpose Relay DPDT 2 Form C Through Hole
额定电压DC 220 V
额定电流 2 A
额定功率 60.0 W
触点类型 DPDT
功耗 400 mW
上升时间 3.00 ms
触点额定电流 2 A
线圈电压 12 VDC
线圈电流 30 mA
线圈电阻 400 Ω
载流 3.00 A
额定电流Max 3 A
线圈电压DC 12 V
线圈功率 360 mW
额定功率Max 60W, 125VA
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压 30 VDC
安装方式 Through Hole
引脚数 10
封装 DIP
长度 20 mm
宽度 9.9 mm
高度 9.9 mm
封装 DIP
触点材质 Silver, Gold
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DS2E-ML2-DC12V Panasonic 松下 | 当前型号 | 当前型号 |
DS2E-SL2-DC12V 松下 | 类似代替 | DS2E-ML2-DC12V和DS2E-SL2-DC12V的区别 |
DS2Y-SL2-DC12V 松下 | 类似代替 | DS2E-ML2-DC12V和DS2Y-SL2-DC12V的区别 |
G6AK-274P-ST-US-DC12 欧姆龙 | 功能相似 | DS2E-ML2-DC12V和G6AK-274P-ST-US-DC12的区别 |
