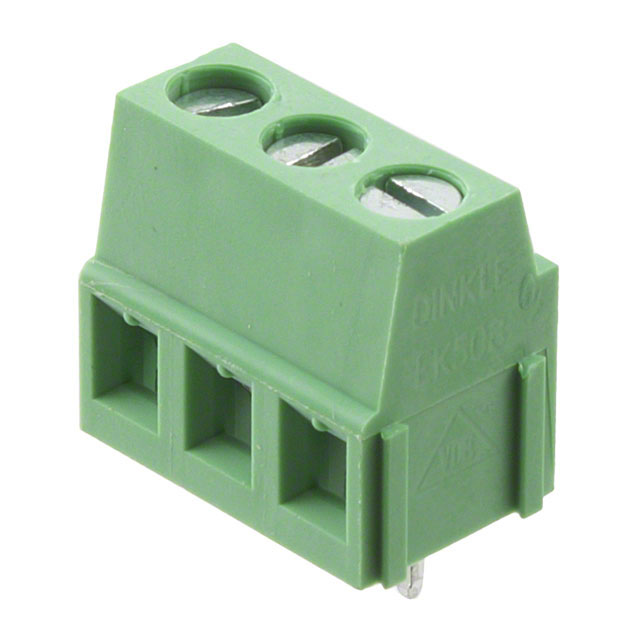

DMB-4770-T3图片1

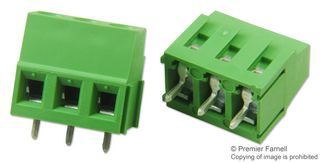

DMB-4770-T3图片2
DMB-4770-T3图片3
DMB-4770-T3图片4
DMB-4770-T3图片5
DMB-4770-T3图片6
DMB-4770-T3图片7
DMB-4770-T3概述

BUD INDUSTRIES  DMB-4770-T3  接线端子块, PCB, 3路, 24-12AWG

The is a 3-position 5.08mm Terminal Connector for use with terminal block and PCB and it is available for rear board location. 2.5mm² conductor area, screw wire connection method and it has 12AWG maximum 24AWG minimum wire size.

.
300V Rated voltage
.
20A Rated current
.
2000VAC/minute Insulation withstand voltage
.
500MR Insulation resistance or more at 500VDC
.
4kg.cm Torque
DMB-4770-T3中文资料参数规格
技术参数

触点数 3

线规 12AWG ~ 24AWG

额定电流 24 A

电路数 3

针脚数 3

额定电流Max 20 A

额定电压Max 300 V

额定电压 250 V

工作电压Max 300 V

封装参数

安装方式 Through Hole

外形尺寸

高度 13.8 mm

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free
