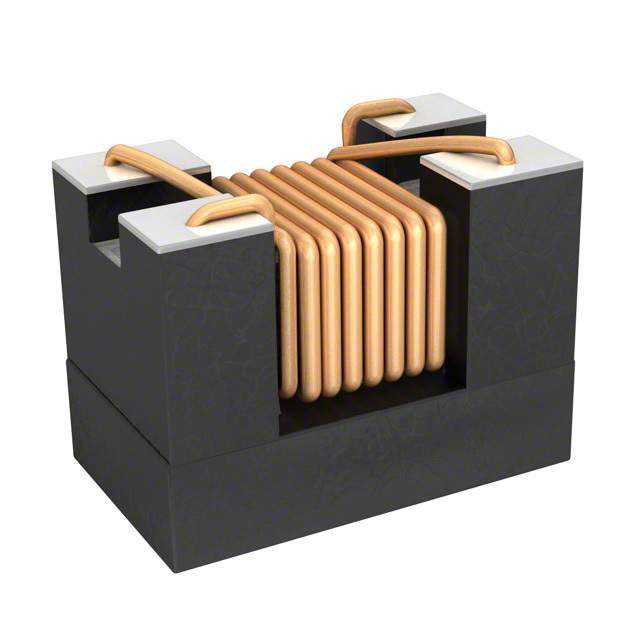

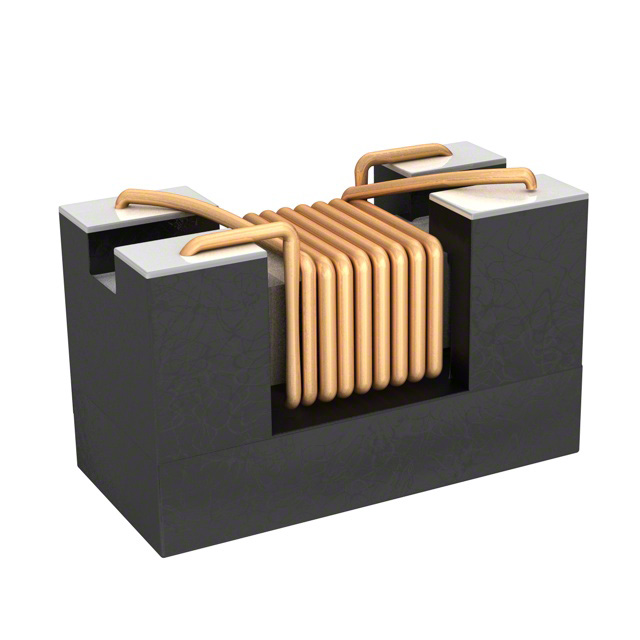

MURATA DLW31SN222SQ2L 扼流圈, 共模, 阻抗2200Ω, 100MHz
Murata 1206 DLW31S 系列 SMD 共模
DLP31S series common mode choke coil chips with high impedance in a small package. The DLP31S series utilise ferrite material technology and film processing technology to give excellent performance at high frequency ranges and is suitable for differential signal line application.
Small size, low profile, SMD. 3.2x1.6x1.15mm Tolerance: +-0.15mm
High common mode impedance 550 ohm at 100MHz typ. in small size
Suppresses high frequency noise that was unable to be suppressed with existing common mode choke coils
Suitable for differential signal lines like USB, because DLP31S does not provide distortion to high speed signal transmission due to its high coupling coupling coefficient: 0.98 min.
### Applications
USB lines of PCs, peripheral equipment
LVDS lines of Note-PCs, LCDs
USB lines of digital AV equipment such as digital cameras
频率 100 MHz
额定电压DC 50 V
额定电流 200 mA
绝缘电阻 10.0 MΩ
容差 ±25 %
自谐频率 100 MHz
电阻 2.20 kΩ
共振频率 100 MHz
屏蔽 No
阻抗 2.20 kΩ
测试频率 100 MHz
电阻DC) 1.2 Ω
额定电流Max 200 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 50 VDC
电阻DC Max 1.2 Ω
安装方式 Surface Mount
引脚数 4
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.9 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 消费电子产品, 工业, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DLW31SN222SQ2L muRata 村田 | 当前型号 | 当前型号 |
PE-1206CCMC222STS 普思电子 | 类似代替 | DLW31SN222SQ2L和PE-1206CCMC222STS的区别 |
SRF3216-222Y 伯恩斯 | 功能相似 | DLW31SN222SQ2L和SRF3216-222Y的区别 |
744232222 伍尔特 | 功能相似 | DLW31SN222SQ2L和744232222的区别 |
