DK284-73

CARLING  DK284-73  拨动开关, DK系列, 不发光, DPST, 开-无-关, 面板, 16 A

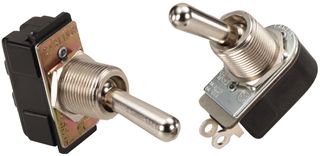

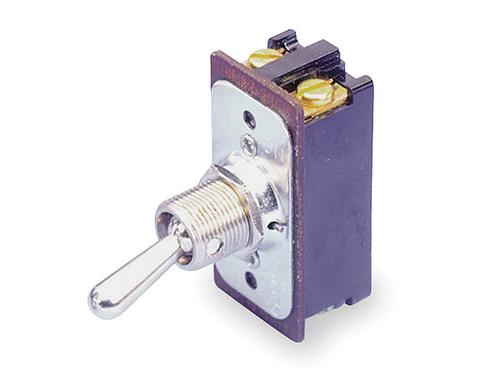

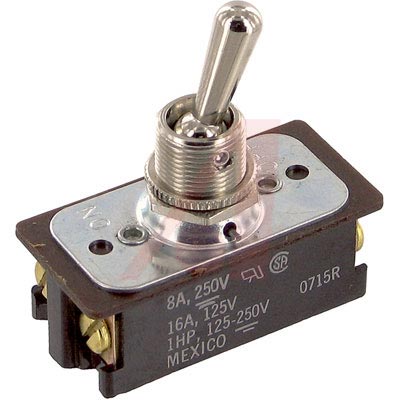

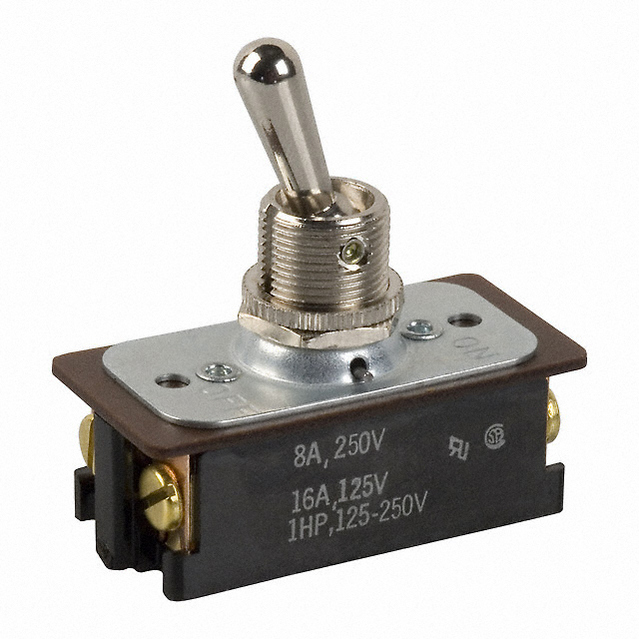

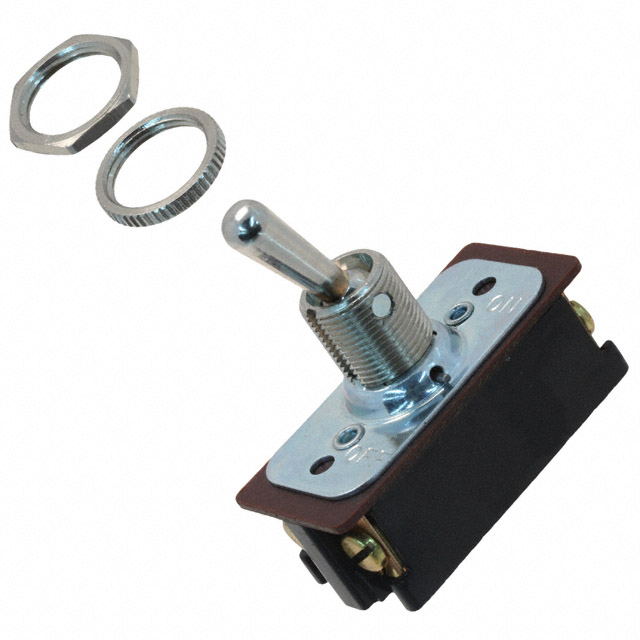

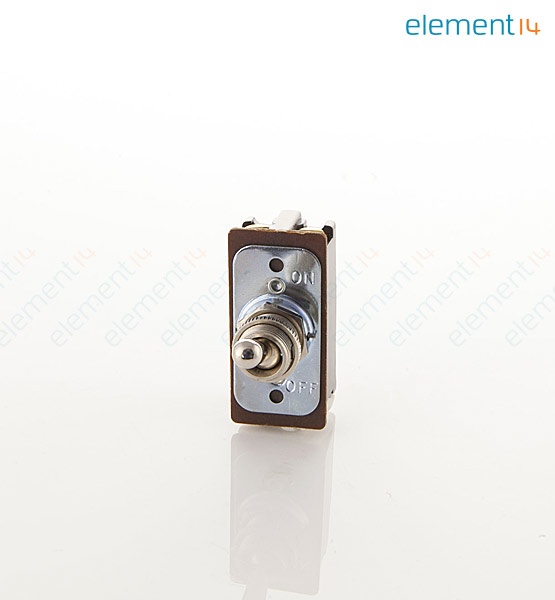

The is a double-pole single-throw heavy-duty Toggle Switch with screw terminals and unsealed bat actuator style. The DK-series toggle switch features a quick-make and quick-break contact mechanism. This switch offers maintained single throw circuits and fit the industry standard 0.5-inch diameter mounting hole. Its sturdy metal construction and stiff actuation force will withstand the abuses of virtually any stringent application. Suitable for AC/DC applications, including high amperage AC/DC motor control.

.

Phenolic base

.

Nickel-plated brass actuator and bushing

.

Bushing mount

.

Eco-friendly

.

1000VRMS minimum Dielectric strength

.

100MR Minimum insulation resistance
