DO1608C-103MLB

DO1608C-103MLB图片1
DO1608C-103MLB图片2
DO1608C-103MLB图片3
DO1608C-103MLB概述

COILCRAFT  DO1608C-103MLB  表面贴装功率电感器, AEC-Q200 DO1608C系列, 10 µH, ± 20%, 非屏蔽, 0.16 ohm, 1.5 A

The is a surface mount unshielded Power Inductor with ferrite core. This inductor features gold over nickel over moly-manganese terminations and is resistance to soldering heat maximum three 40 seconds reflows at +260°C, parts cooled to room temperature between cycles. This inductor features moisture sensitivity level MSL of 1, failures in time FIT/mean time between failures MTBF is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332 and only pure water or alcohol recommended for wash. Current at 25°C causes an inductance drop of 30% typical from its value without current and Inductance tested at 100 kHz, 0.1Vrms, 0ADC using an Agilent/HP 4263B LCR meter or equivalent.

.
High energy storage and very low resistance
.
Defence Supply Centre CID A-A-59742 standard
DO1608C-103MLB中文资料参数规格
技术参数

额定电流 1.5 A

电感 10 µH

自谐频率 35 MHz

电感公差 ±20 %

测试频率 100 kHz

电阻DC) 160 mΩ

工作温度Max 85 ℃

工作温度Min 40 ℃

电阻DC Max 0.16 Ω

封装参数

安装方式 Surface Mount

封装 6.6mm x 4.45mm x 2.92mm

外形尺寸

长度 6.6 mm

宽度 4.45 mm

高度 2.92 mm

封装 6.6mm x 4.45mm x 2.92mm

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Power Management, 军用与航空, Power Management, Aerospace, Defence, Military, 电源管理, 国防, 国防, 军用与航空, Aerospace, Defence, Military

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

REACH SVHC标准 No SVHC

军工级 Yes

REACH SVHC版本 2014/12/17

数据手册

DO1608C-103MLB引脚图与封装图

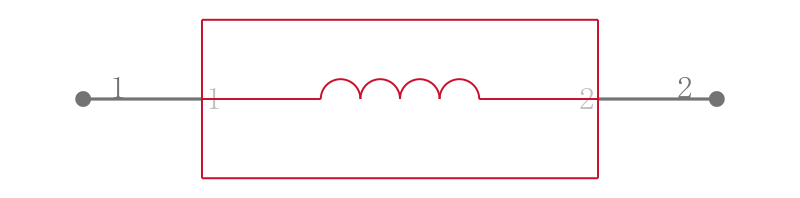

DO1608C-103MLB引脚图

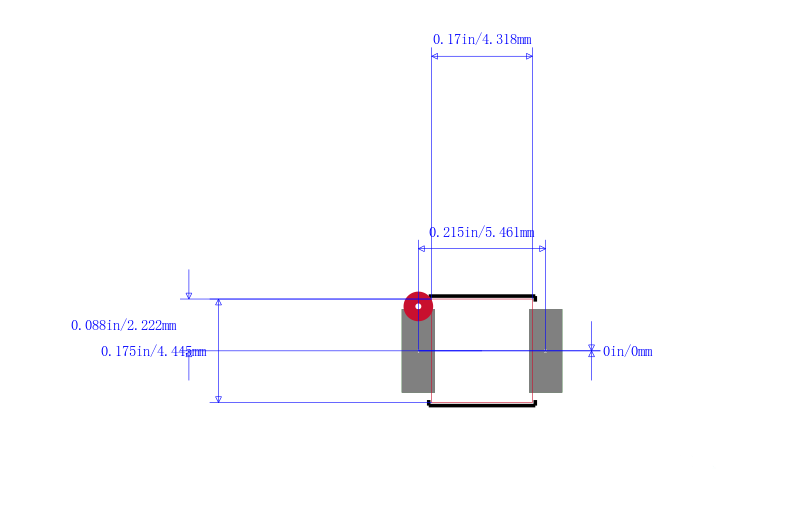

DO1608C-103MLB封装图

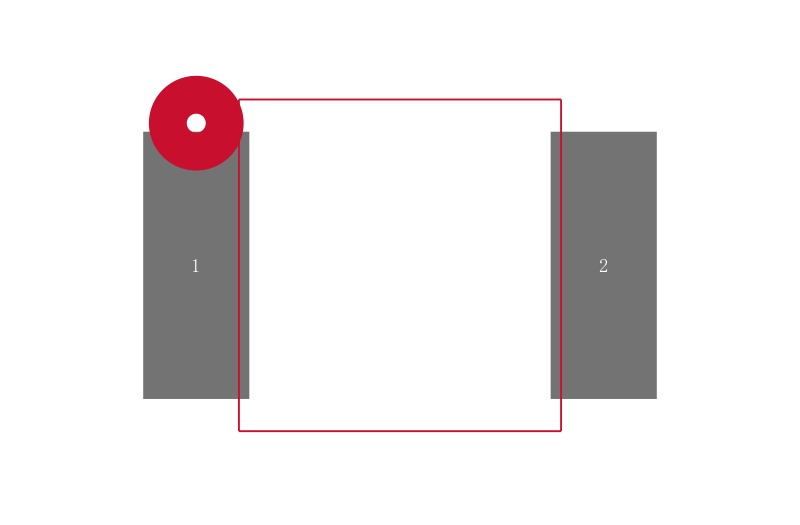

DO1608C-103MLB封装焊盘图
