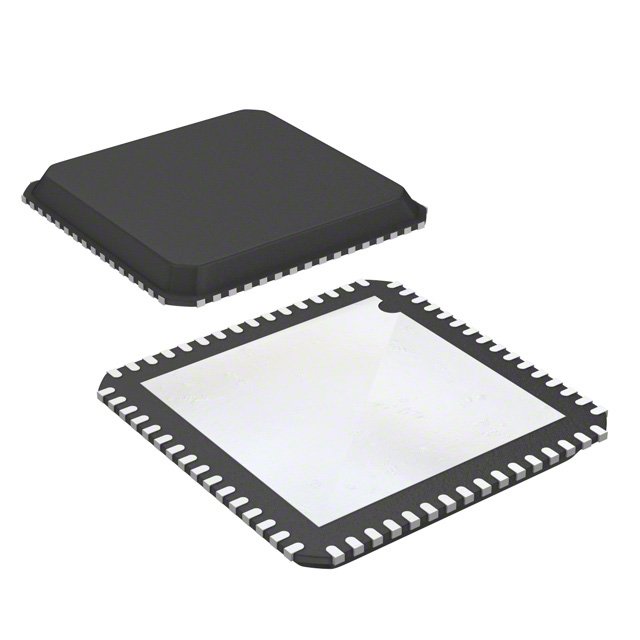

TEXAS INSTRUMENTS DAC5681ZIRGCT 芯片, 数模转换器, 16位, 1GSPS, QFN-64, 整卷
The DAC5681Z is a 16-bit 1.0 GSPS digital-to-analog converter DAC with wideband LVDS data input, integrated 2x to 4x interpolation filters, on-board clock multiplier, and internal voltage reference. The DAC5681Z offers superior linearity, noise, crosstalk, and PLL phase noise performance.
The DAC5681Z integrates a wideband LVDS port with on-chip termination. Full-rate input data can be transferred to a single DAC channel, or half-rate and 1/4-rate input data can be interpolated by on-board 2x or 4x FIR filters. Each interpolation FIR is configurable in either low-pass or high-pass mode, allowing selection of a higher order output spectral image. An on-chip delay lock loop DLL simplifies LVDS interfacing by providing skew control for the LVDS input data clock.
The DAC5681Z is characterized for operation over the industrial temperature range of 40°C to 85°C and is available in a 64-pin VQFN package. Other members of the family include the dual-channel, interpolating DAC5682Z and the single-channel, non-interpolating DAC5681.
输出接口数 1
供电电流 191 mA
通道数 1
针脚数 64
位数 16
耗散功率 1.6 W
采样率 1.00 Hz
功耗 800 mW
过温保护 No
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1600 mW
数模转换数DAC 1
电源电压Max 1.9V, 3.6V
电源电压Min 1.7V, 3V
安装方式 Surface Mount
引脚数 64
封装 VQFN-64
封装 VQFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DAC5681ZIRGCT TI 德州仪器 | 当前型号 | 当前型号 |
DAC5681ZIRGCR 德州仪器 | 完全替代 | DAC5681ZIRGCT和DAC5681ZIRGCR的区别 |
