TEXAS INSTRUMENTS DRV110EVM 评估模块, DRV110EVM

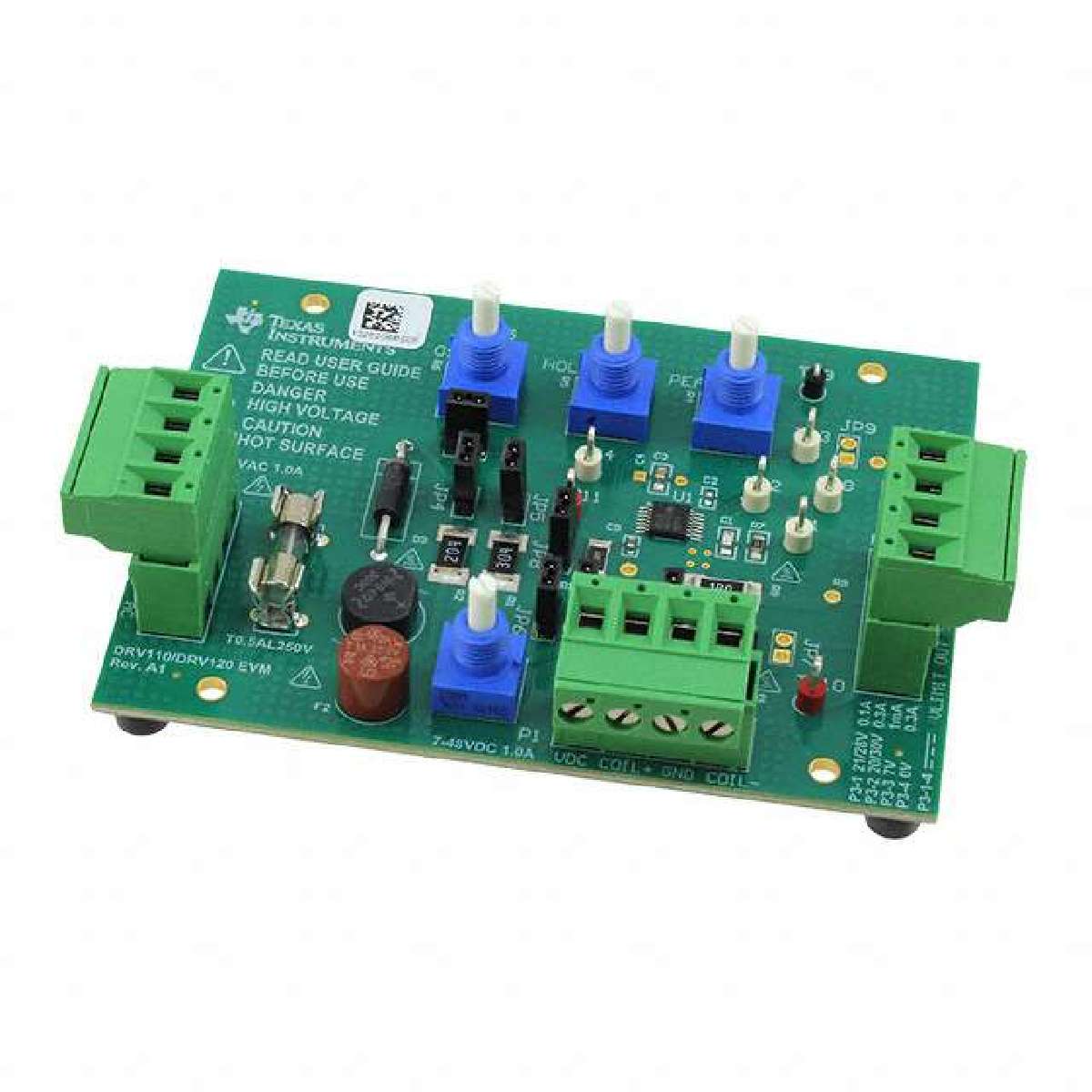

The uses the DRV110A 14-pin TSSOP packaged version of DRV110 a power saving PWM solenoid driver. The EVM operates with full-rated performance either from a 7-48V DC, or 100-240V AC supply, enables easy control of all the adjustable device parameters and allows the connection of any solenoid through a connector. The user"s guide describes the characteristics, operation, and use of the Texas Instruments DRV110 evaluation module EVM. This EVM is designed to help the user easily evaluate and test the operation and functionality of the DRV110 driving a solenoid. This user"s guide includes setup instructions for the hardware, printed-circuit board layouts for the EVM, a schematic diagram and a bill of materials.
