TEXAS INSTRUMENTS DAC3482EVM 评估模块, DAC3482EVM

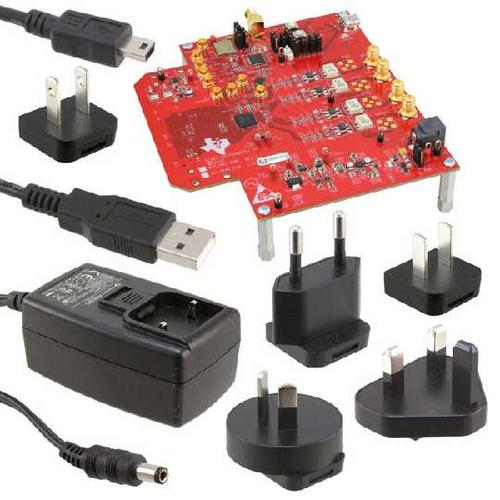

The is an Evaluation Module for evaluate the operation and performance of the DAC3482, a two-channel ultra-low power 16-bit 1.25GSPS digital-to-analogue converter DAC. The DAC3482 provides 16-bit or 8-bit wide DDR LVDS data input, integrated 2x/4x/8x/16x interpolation filters, 32-bit NCO, PLL and exceptional linearity at high IFs. The board provides a flexible environment to test the DAC3482 under a variety of clock and data input and IF output conditions. For ease of use as a complete IF transmitter solution, the board includes the Texas Instruments CDCE62005 clock generator/jitter cleaner for clocking the DAC3482. Besides providing a high-quality, low jitter DAC sampling clock to the DAC3482, the CDCE62005 also provides FPGA clocks to the TSW1400EVM or TSW3100EVM as FPGA reference clocks.
- .
- Comprehensive test capability for the DAC3482
- .
- Direct connection to TSW1400/TSW3100 signal generator
- .
- Includes CDCE62005 for clock generation or jitter cleaning
- .
- Software support with a full featured GUI for easy testing and prototyping
- .
- FMC-DAC-Adapter card compatible to connect with FMC interconnect headers
- .
- Direct compatibility with HSMC headers on Altera based FPGA EVMs
