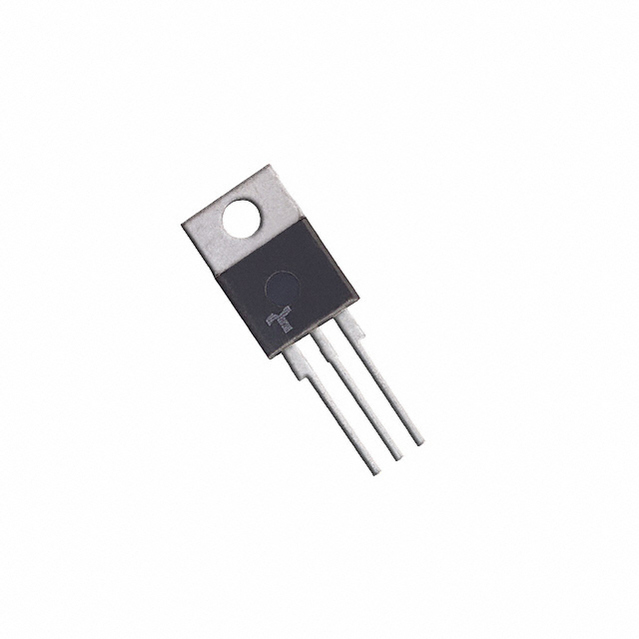

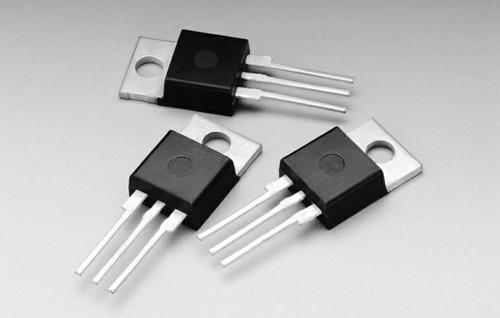

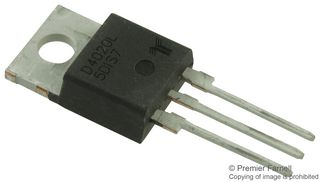

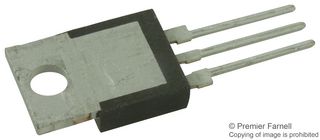

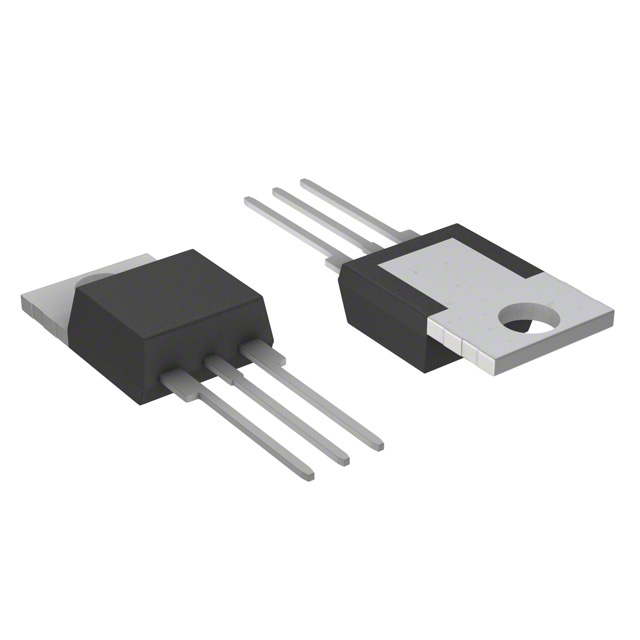

LITTELFUSE D4020L 标准恢复功率整流器
Description
Silicon rectifers that are excellent for DC phase control applications with motor loads. Isolated mounting tab allows for use in circuits with common anode or common cathode connections.
Features & Benefts
• RoHS Compliant
• Glass – passivated junctions
• Voltage capability up to 1000 V
• Surge capability up to 350 A
得捷:
DIODE GP 400V 12.7A TO220
e络盟:
LITTELFUSE D4020L 标准恢复功率整流器
艾睿:
Diode Switching 400V 12.7A 3-Pin3+Tab TO-220AB Isolated
富昌:
Dxx20L系列 400V 12.7A Teccor 晶闸管 安培整流器 绝缘带 TO-220AB
Chip1Stop:
Diode Switching 400V 12.7A 3-Pin3+Tab TO-220AB Isolated
Newark:
The D4020L is a Teccor® Silicon Rectifier feature glass-passivated junctions to ensure long term reliability and stability. In addition, glass offers a rugged, reliable barrier against junction contamination. Isolated mounting tab allows for use in circuits with common anode or common cathode connections. 100% matte tin-plated terminals, UL94V-0 flame-rated body and copper alloy lead.
额定电压DC 400 V
额定电流 20.0 A
输出电流 ≤20.0 A
针脚数 3
正向电压 1.60 V
极性 Standard
反向恢复时间 4 µs
正向电流 12.7 A
最大正向浪涌电流(Ifsm) 300 A
正向电压Max 1.6 V
工作温度Max 125 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
产品生命周期 Discontinued at Digi-Key
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
D4020L Littelfuse 力特 | 当前型号 | 当前型号 |
D6020L 力特 | 类似代替 | D4020L和D6020L的区别 |
D6015L 力特 | 类似代替 | D4020L和D6015L的区别 |
D4015L 力特 | 类似代替 | D4020L和D4015L的区别 |
