330pF 300V B Φ7.0mm

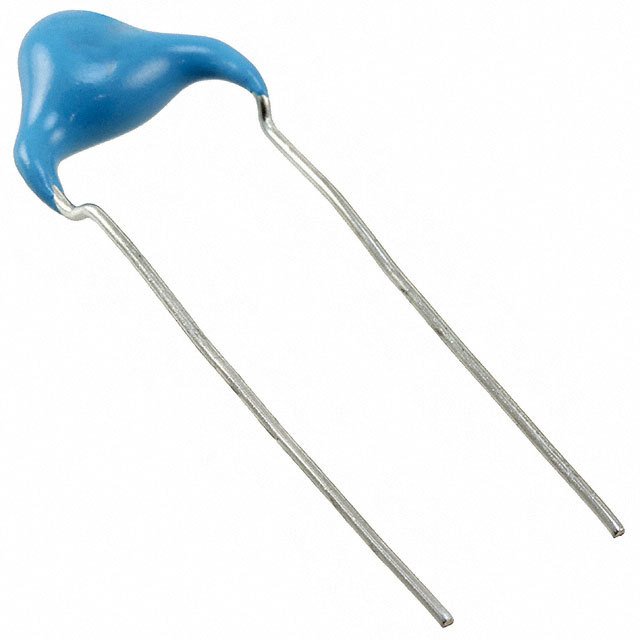

By adding one of Murata"s single-layer ceramic disc capacitors to your circuit, you can ensure high quality operation at a lower cost. It can withstand a voltage of 300 VAC. This high frequency capacitor has a maximum operating temperature of 125 °C. This product is 7Max mm deep. The DE1B3KX331KN4AP01F high frequency capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 10 mm. Its capacitance value is 330pF. It has a tolerance of 10%.
额定电压DC 300 V
电容 330 pF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 300 VAC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 10 mm
长度 7 mm
宽度 7 mm
高度 7.0 mm
直径 Φ7.0mm
封装 Radial, Disc
引脚间距 10 mm
厚度 7 mm
材质 B
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DE1B3KX331KN4AP01F muRata 村田 | 当前型号 | 当前型号 |
DE1B3KX331KA4BP01F 村田 | 完全替代 | DE1B3KX331KN4AP01F和DE1B3KX331KA4BP01F的区别 |
DE1B3KX331KA4BN01F 村田 | 功能相似 | DE1B3KX331KN4AP01F和DE1B3KX331KA4BN01F的区别 |
DE1B3KX331KB4BN01F 村田 | 功能相似 | DE1B3KX331KN4AP01F和DE1B3KX331KB4BN01F的区别 |
