Ixys### 二极管和整流器,Ixys
整流器,Ixys
### 二极管和整流器,Ixys
欧时:

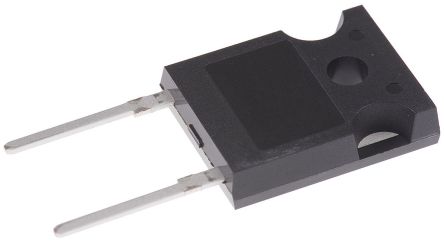

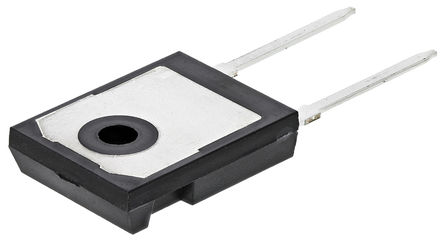

IXYS 二极管 DSEI60-12A 开关, Io=52A, Vrev=1200V, 60ns, 2引脚 TO-247AD封装
立创商城:
1.2kV 52A 40ns
得捷:

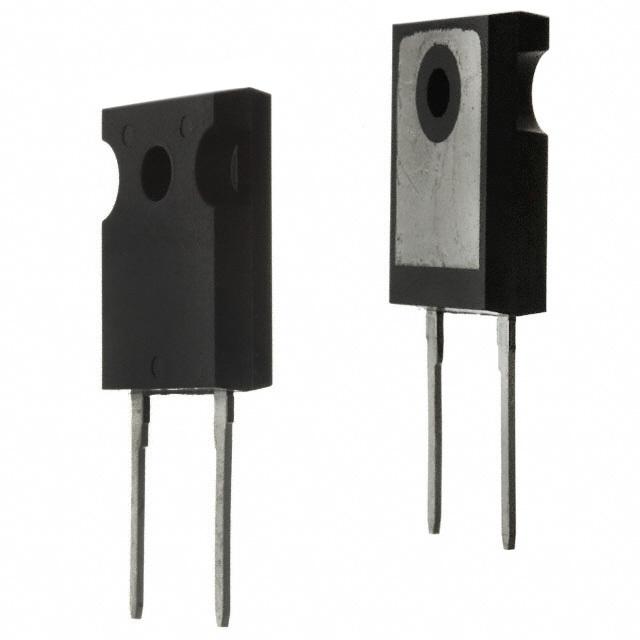

DIODE GEN PURP 1.2KV 52A TO247AD
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode DSEI60-12A rectifier from Ixys Corporation. It is made in a single configuration. This rectifier has a minimum operating temperature of -40 °C and a maximum of 150 °C. Its peak non-repetitive surge current is 450 A, while its maximum continuous forward current is 52 A.
Chip1Stop:
Diode Switching 1.2KV 52A 2-Pin2+Tab TO-247AD
TME:
Diode: rectifying; THT; 1.2kV; 52A; TO247AD; 40ns
Verical:
Rectifier Diode Switching 1.2KV 52A 60ns 2-Pin2+Tab TO-247AD
Newark:
RECTIFIER, 1.2KV, 52A, TO-247AD
Win Source:
DIODE GEN PURP 1.2KV 52A TO247AD
额定电压DC 1.20 kV
额定电流 52.0 A
输出电流 ≤52.0 A
负载电流 52 A
正向电压 2.55V @60A
极性 Standard
反向恢复时间 60 ns
正向电流 52 A
最大正向浪涌电流(Ifsm) 450 A
正向电压Max 2.55 V
正向电流Max 52 A
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 TO-247-2
长度 16.26 mm
宽度 5.3 mm
高度 21.46 mm
封装 TO-247-2
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DSEI60-12A IXYS Semiconductor | 当前型号 | 当前型号 |
DSEI60-02A IXYS Semiconductor | 类似代替 | DSEI60-12A和DSEI60-02A的区别 |
DSP25-12A IXYS Semiconductor | 功能相似 | DSEI60-12A和DSP25-12A的区别 |
DH60-18A IXYS Semiconductor | 功能相似 | DSEI60-12A和DH60-18A的区别 |
