330pF 3.15kV B Φ6.0mm

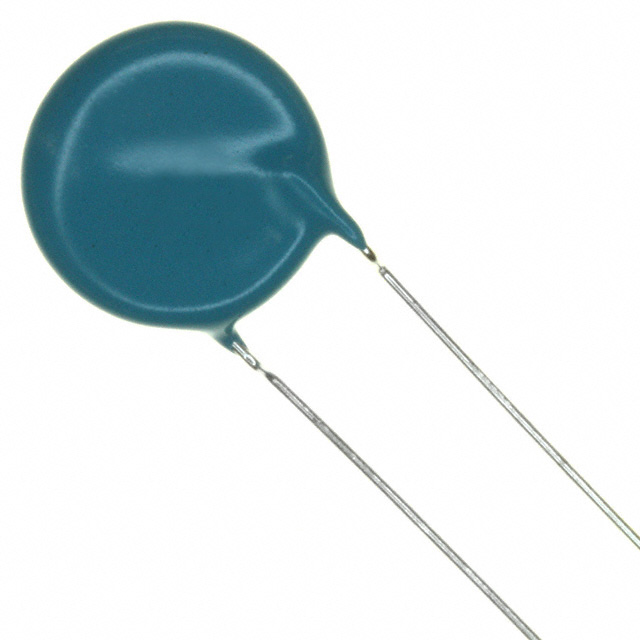

Ensure your internal circuitry is protected from unexpected voltage spikes by using one of these ceramic disc single-layer ceramic disc capacitors from Murata. It can withstand a voltage of 3150 VDC. This high frequency capacitor has a maximum operating temperature of 85 °C. The DEBB33F331KP3A high frequency capacitor has a radial termination style. This product is 6Max mm deep. It has a tolerance of 10%. This part has a lead diameter of 0.6 mm and a pitch of 7.5 mm. Its capacitance value is 330pF.
额定电压DC 3.15 kV
电容 330 pF
容差 ±10 %
电介质特性 B
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 3150 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 7.5 mm
长度 6 mm
宽度 6 mm
高度 6.0 mm
直径 Φ6.0mm
封装 Radial, Disc
引脚间距 7.5 mm
厚度 6 mm
材质 B
工作温度 -25℃ ~ 85℃
产品生命周期 End of Life
包装方式 Tape & Box TB
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DEBB33F331KP3A muRata 村田 | 当前型号 | 当前型号 |
DEBB33F331KC3B 村田 | 完全替代 | DEBB33F331KP3A和DEBB33F331KC3B的区别 |
